AD-Belt U9 Pure™ [UHF RFID tag and inlay]

UHF RFID Inlay: AD Belt U9 Pure

Compact size, high performance and sustainable in item level tagging

Industry segments: Apparel and Fashion, Industrial Applications

Our AD Belt U9 Pure™ inlays and tags are designed for global retail, industry and supply-chain applications, offering excellent performance on difficult-to-tag or low-detuning materials such as cardboard and plastic, and in other demanding, close-coupling environments.

Sustainability
The AD Belt U9 Pure™ is produced via innovative antenna manufacturing technology where aluminum antenna is made directly on a paper substrate. Inlays and Tags using this antenna are 100% plastic free, and according to an LCA (Life Cycle Analysis) study by an independent institute provide typically 70-90% savings in carbon footprint compared to traditional etching method. The innovative manufacturing process also enables other benefits, such as recycling excess materials and reducing the total amount of materials while maintaining the overall performance of the product. The impact of the Pure™ paper-based inlays and tags in cardboard recycling has been verified by a third-party laboratory in the EU against PTS-RH 021:97/2012. In the US, the hangtag construction is certified by West Michigan University against SBS-E Part I (repulpability) and Part II (recyclability). How2Recycle® has “pre-qualified1” the RFID construction when applied to a paper hangtag and determined that the structure is eligible  for a widely recyclable label.

Application
AD Belt U9 Pure™ inlays and tags have a compact 73 mm / 2.8 inch form factor, which can be easily converted into end-application usage, and are available in dry, wet and label delivery formats. Belt equipped with NXP UCODE 9 offers 96-bit of EPC memory. Furthermore, it offers a self adjust feature to maximize product performance in challenging environments and has an improved read and write sensitivity and faster encoding speed compared to NXP UCODE 8.

Quality
Avery Dennison inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.

_________________________________
1Additional components, product application, or other attributes may change the final recyclability of the package.

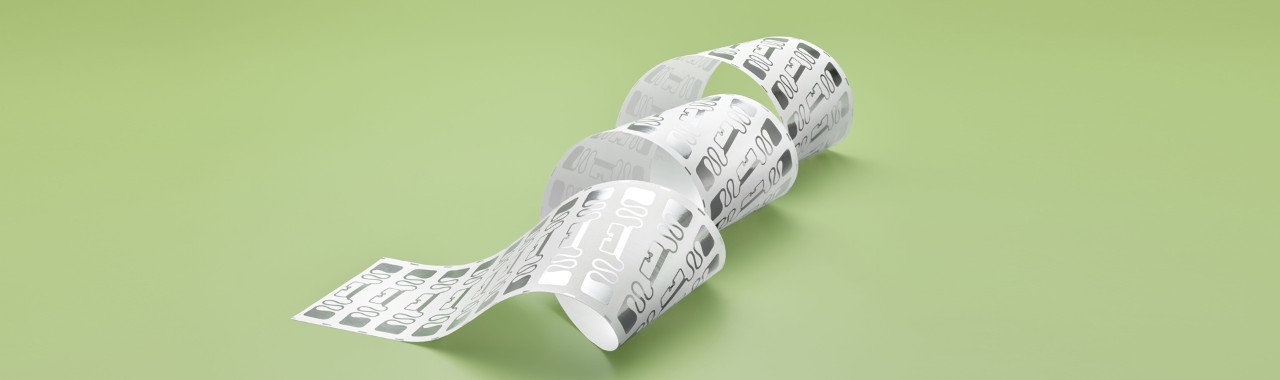

AD Pure™ Product Line

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in dry, wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

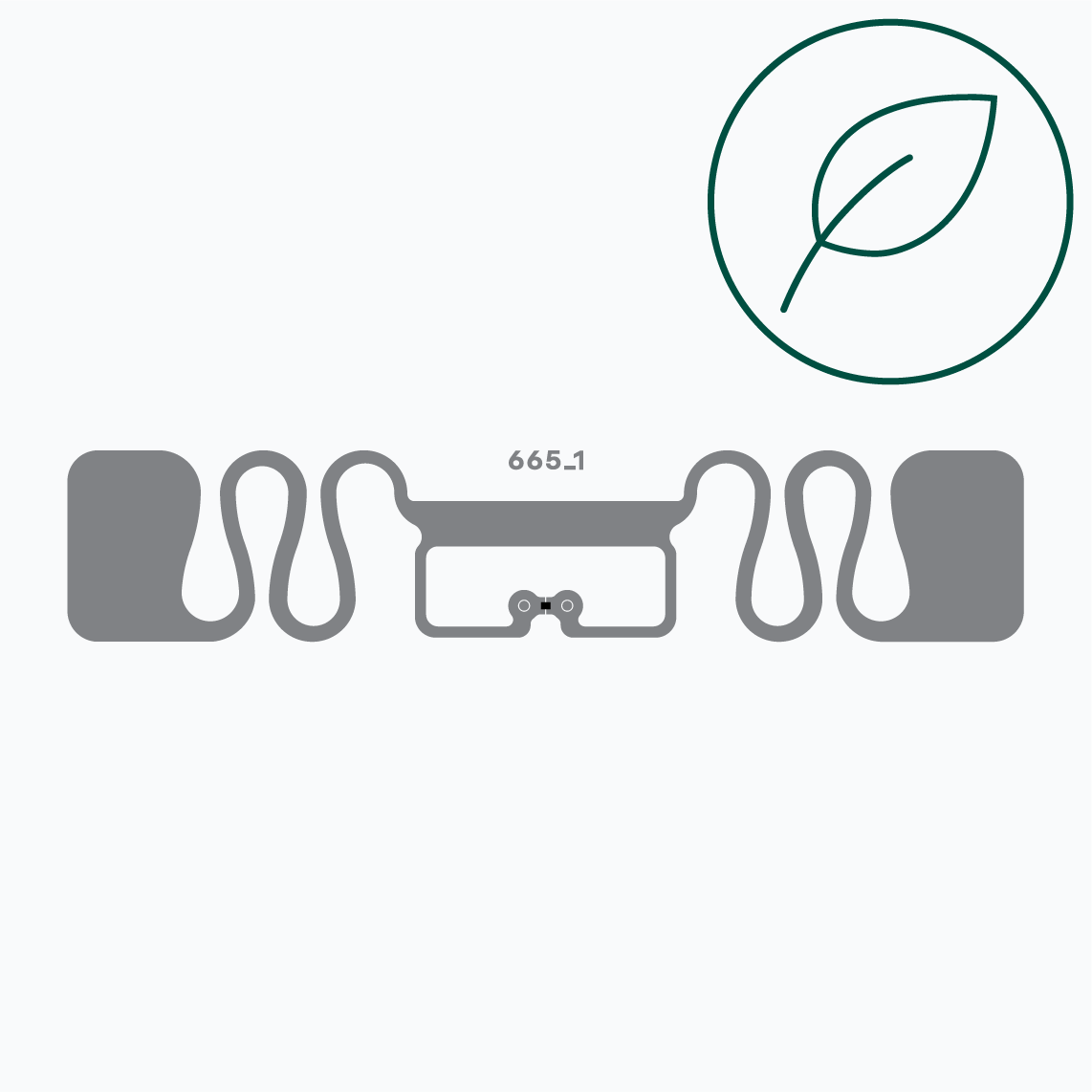

UHF RFID Inlay: Belt, UCODE 9 Pure

Belt, U9 Pure™

  • Chip: NXP UCode 9
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    70 x 14 mm / 2.75 x 0.55 in
  • Die Cut Dimensions:
    73 x 17 mm / 2.87 x 0.67 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification: F, I, L, O, Q, R, W2, W5, W6, Y2
  • Product Code:

    Paper 40#
    3008783 / IL-604589 [Dry Inlay]
    3008789 / IL-604593 [Wet Inlay]
    3008788 / IL-604592 [Label]

    Paper 64
    3009205 / IL-604939 [Dry Inlay]
    3009206 / IL-604983 [Wet Inlay]
    3009204 / IL-604963 [Label]
