AD-663u7  [UHF RFID tag and inlay]

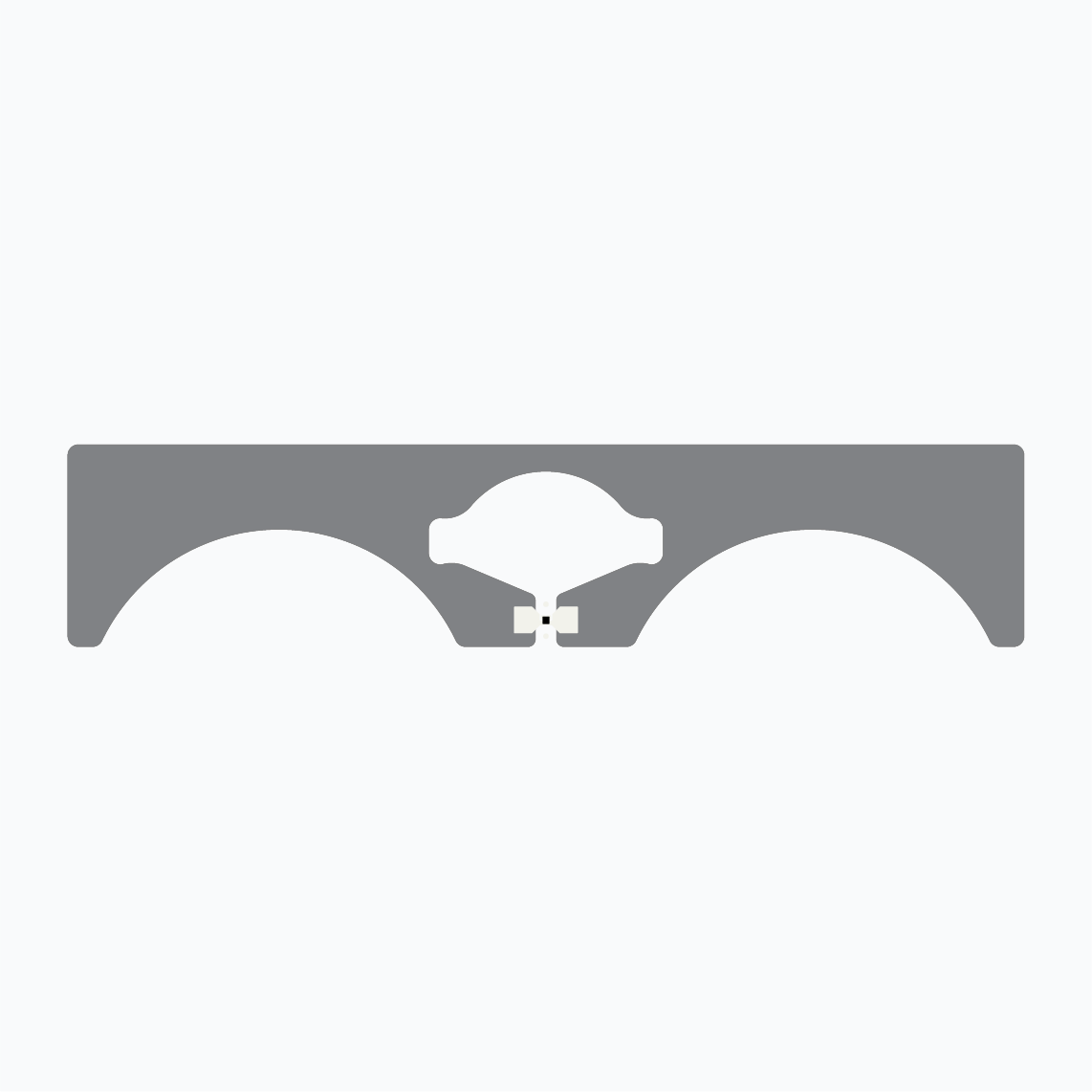

UHF RFID Inlay: AD-663

High performance and large user memory for tracking applications

Industry segments: Automotive, Industrial Applications, Sports, Events and Gaming

AD-663u7XM and AD-663u7XM+ inlays from Avery Dennison Smartrac are Gen2 UHF RFID products that  perform exceptionally across a wide range of dielectrics and are available in two chip formats: NXP UCODE 7xm and NXP UCODE 7xm+.

Both products are suitable for a wide variety of RFID tagging applications, particularly those related to glass, automotive and industrial asset tracking, and race timing.

AD-663u7XM is equipped with a UCODE 7XM chip from NXP while AD-663u7XM+ comes with a UCODE 7XM+, with both ICs sharing 448 bits of EPC memory, 2 K-bits of user memory, and 96 bits of serialized TID with a 48 bit unique serial number. AD-663u7XM and AD-663u7XM+ are available in Dry Inlay and Wet Inlay delivery formats.

Like all RFID products from Avery Dennison Smartrac, AD-663u7XM and AD-663u7XM+ inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay: AD-663u7XM

AD-663u7XM

  • Chip: NXP UCODE 7XM
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    90 x 19 mm / 3.54 x 0.75 in
  • Die Cut Dimensions:
    93 x 22 mm / 3.67 x 0.87 in
  • EPC Memory: 448 bits
  • TID Memory: 48-Bit
  • Product Code:
    Dry inlay RF600931 / IL-604432
    Wet inlay RF600932 / IL-604433
UHF RFID Inlay: AD-663u7XM+

AD-663u7XM+

  • Chip: NXP UCODE 7XM+
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    90 x 19 mm / 3.54 x 0.75 in
  • Die Cut Dimensions:
    93 x 22 mm / 3.67 x 0.87 in
  • EPC Memory: 448 bits
  • TID Memory: 48-Bit
  • Product Code:
    Dry inlay RF600917 / IL-607333
    Wet inlay RF600855 / IL-606080
