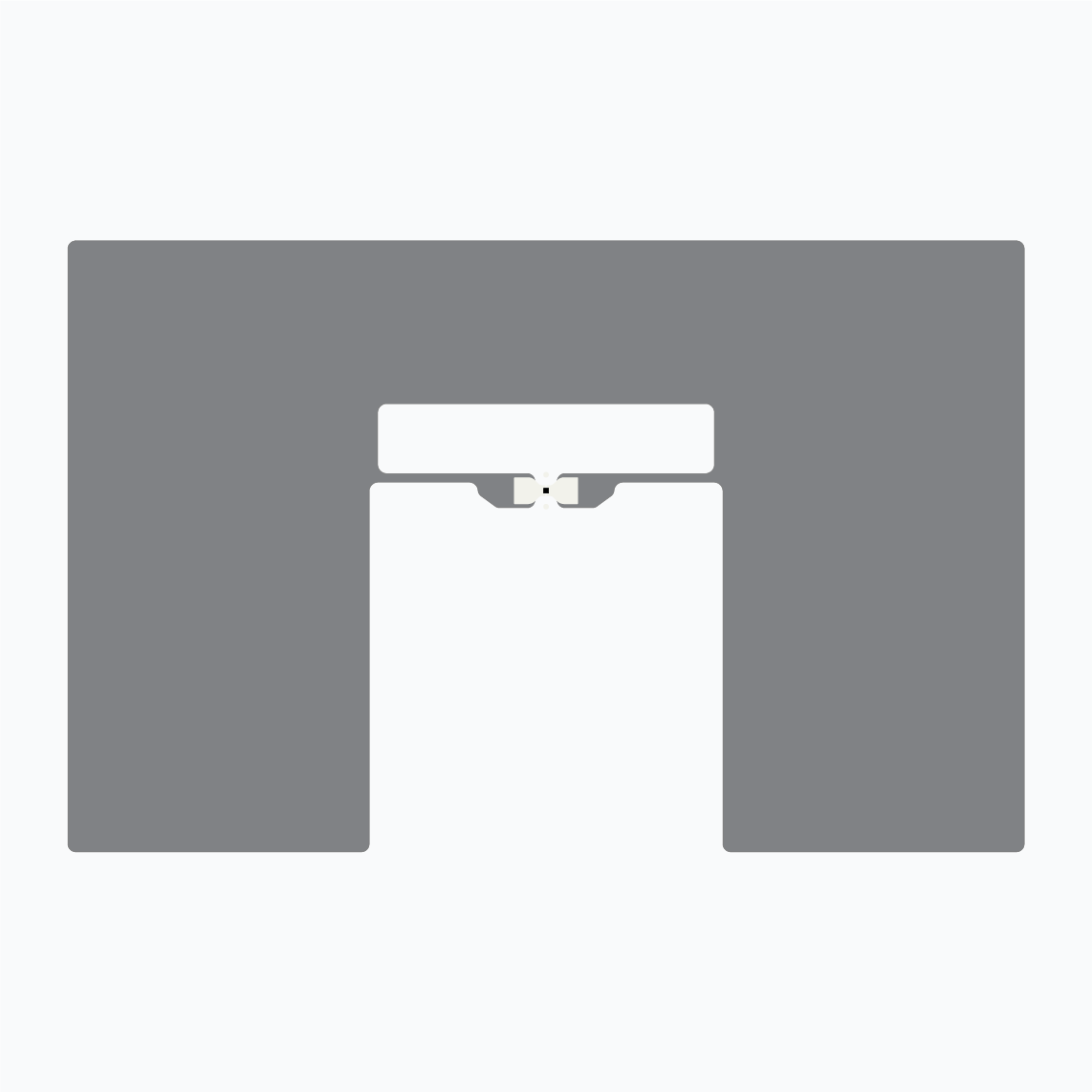

AD-600u8 [UHF RFID tag and inlay]

Made for automotive tire tagging

Industry segments: Automotive, Industrial Applications

AD-600u8 inlays from Avery Dennison Smartrac have been developed for use in automotive tire tagging and on other high dielectric materials.

Equipped with a UCODE 8 chip from NXP, AD-600u8 inlays provide high performance in a variety of industrial applications and are compliant with University of Auburn Spec T.

The product’s UCODE 8 chip that comes with 128 bits of EPC memory, and 96 bits of factory-locked TID with a 48 bit serial number factory-encoded into it. The product is available in Dry Inlay and Wet Inlay delivery formats.

Like all RFID products from Avery Dennison Smartrac, AD-600u8 inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Technical features
Chip	NXP UCODE 8
Frequency Band	UHF 860 - 960 MHz
Antenna Dimensions	90 x 58 mm / 3.54 x 2.26 in
Die Cut Dimensions	93 x 61 mm / 3.66 x 2.38 in
EPC Memory	128 bits
TID Memory	96-Bit Tag IDentifier & 48-Bit
Product Code	Dry inlay RF601623 / IL-603803
Product Code	Wet inlay RF601624 / IL-603804

Please find a comprehensive overview of all features in the data sheet.
