AD-560m4QT [UHF RFID tag and inlay]

Extended memory baggage tracking

Industry segments: Aviation

AD-560m4QT inlays from Avery Dennison Smartrac are the solution of choice for baggage tracking applications that require extended memory.

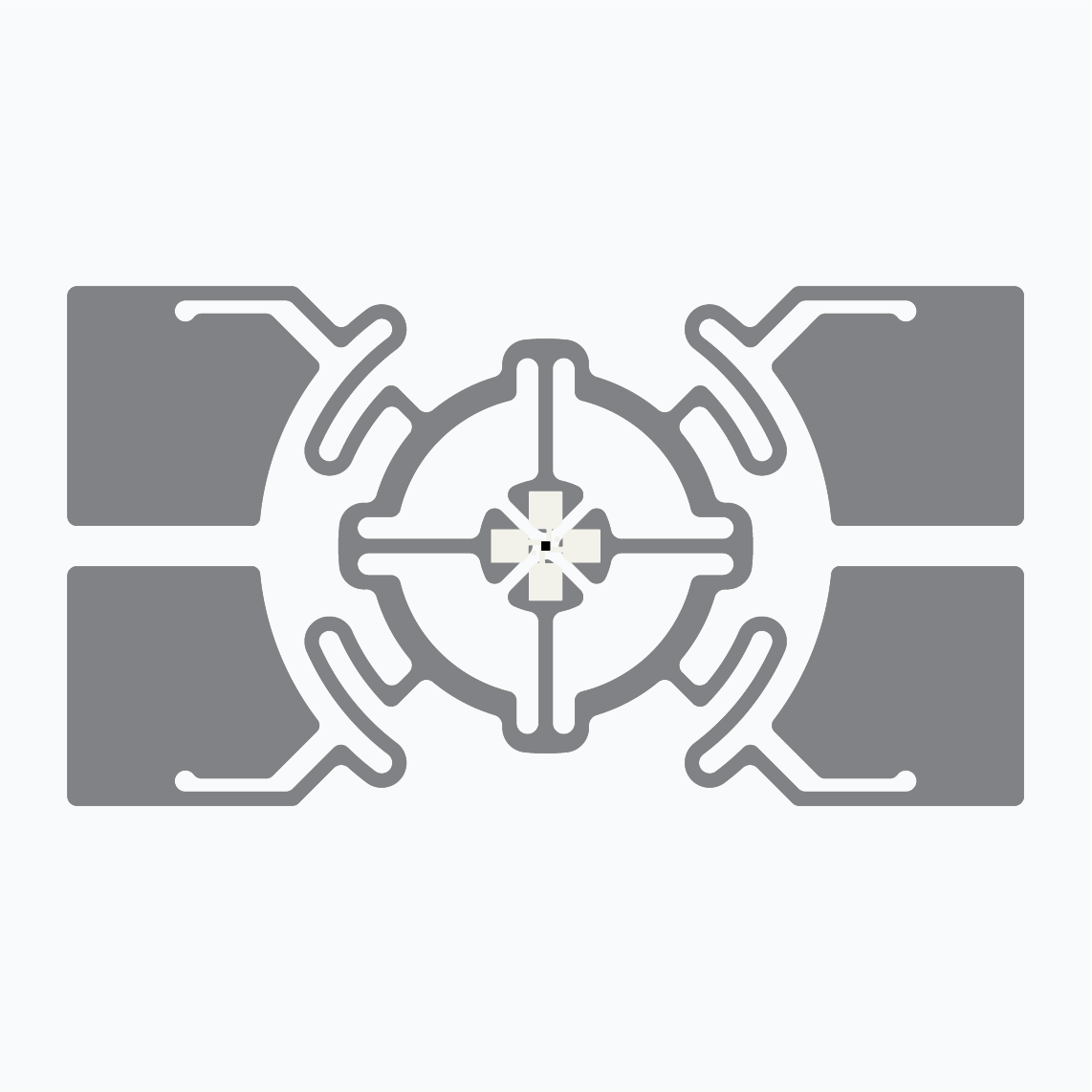

The product’s Monza 4QT RFID chip enables users to maintain a public and private data profile for confidential data storage and consumer privacy, coupled with large user memory. The unique inlay design features a dual-dipole strap for improved broadband (860-960 MHz) read range performance that is less impacted by tag position/placement on luggage, cartons or cases.

The Monza 4QT chip from Impinj offers 128 bits of EPC Memory, a User Memory of 512 bits and 96 bits TID memory with a 48 bit unique serial number. Available delivery formats comprise dry inlay and wet inlay.

Like all RFID products from Avery Dennison Smartrac, AD-560m4QT inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Technical features
Chip	Impinj Monza 4QT
Frequency Band	UHF 860 - 960 MHz
Antenna Dimensions	38 x 70 mm / 1.50 x 2.76 in
Die Cut Dimensions	41 x 73 mm / 1.63 x 2.87 in
EPC Memory	128 bits
TID Memory	48-Bit
Product Code	Dry inlay RF601331 / IL-603695
Product Code	Wet inlay RF601437 / IL-611036

Please find a comprehensive overview of all features in the data sheet.
