Quick guide: RFID labels for Aviation
Avery Dennison Smartrac offers the broadest product range for any RFID challenge and ensures consistent quality and performance. Check our RFID product recommendations for the Aviation industry segment.
Industry segments: Aviation

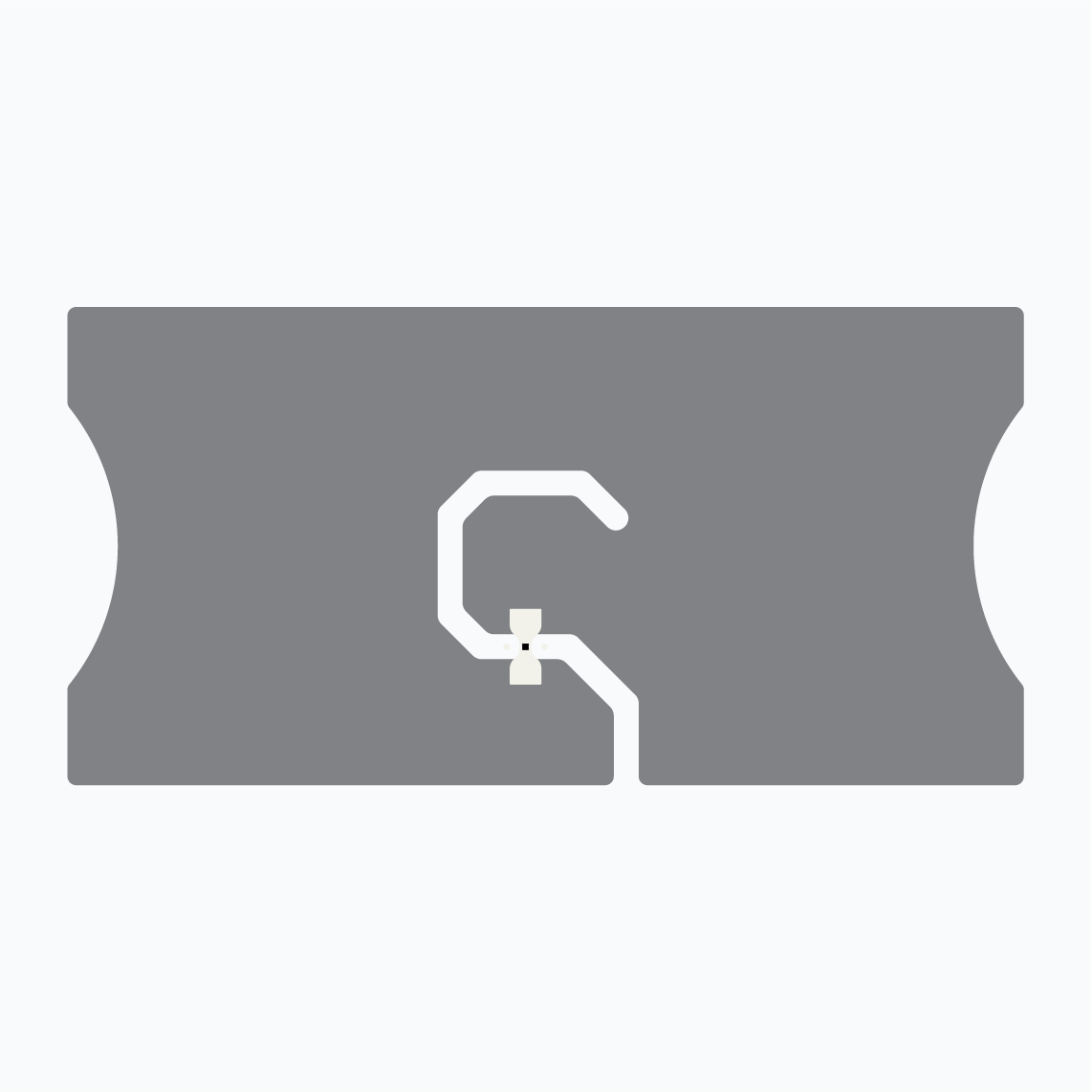

AD-553u8 inlays from Avery Dennison Smartrac are a top choice for tagging aviation baggage in accordance with IATA Resolution 753. The product provides excellent broadband (860-960 MHz) read range performance across multiple regions including Europe, Asia-Pacific and the Americas.
The 38 x 76mm design exhibits long distance read capture from all directions, regardless of tag-to-reader alignment and meets category performance requirements for Spec U under Auburn University’s ARC testing program.
AD-553u8’s UCODE 8 chip from NXP features 128 bits of EPC memory and a 96 bit unique factory-locked TID number. A 48bit unique serial number is factory-encoded into the TID. Available delivery formats include both Dry Inlay and Wet Inlay.
Like all RFID products from Avery Dennison Smartrac, AD-553u8 inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.
Technical features
|
|
---|---|
Chip |
NXP UCODE 8 |
Frequency Band |
UHF 860 - 960 MHz |
Antenna Dimensions | 38 x 76 mm / 1.50 x 2.99 in |
Die Cut Dimensions | 41 x 79 mm / 1.62 x 3.12 in |
EPC Memory | 128 bits |
TID Memory | 96-Bit Tag IDentifier & 48-Bit |
ARC Specification | U |
Product Code | Dry inlay RF602234 / IL-604494 |
Wet inlay RF602236 / IL-605627 |
Please find a comprehensive overview of all features in the data sheet.
