AD-454r6-P  [UHF RFID tag and inlay]

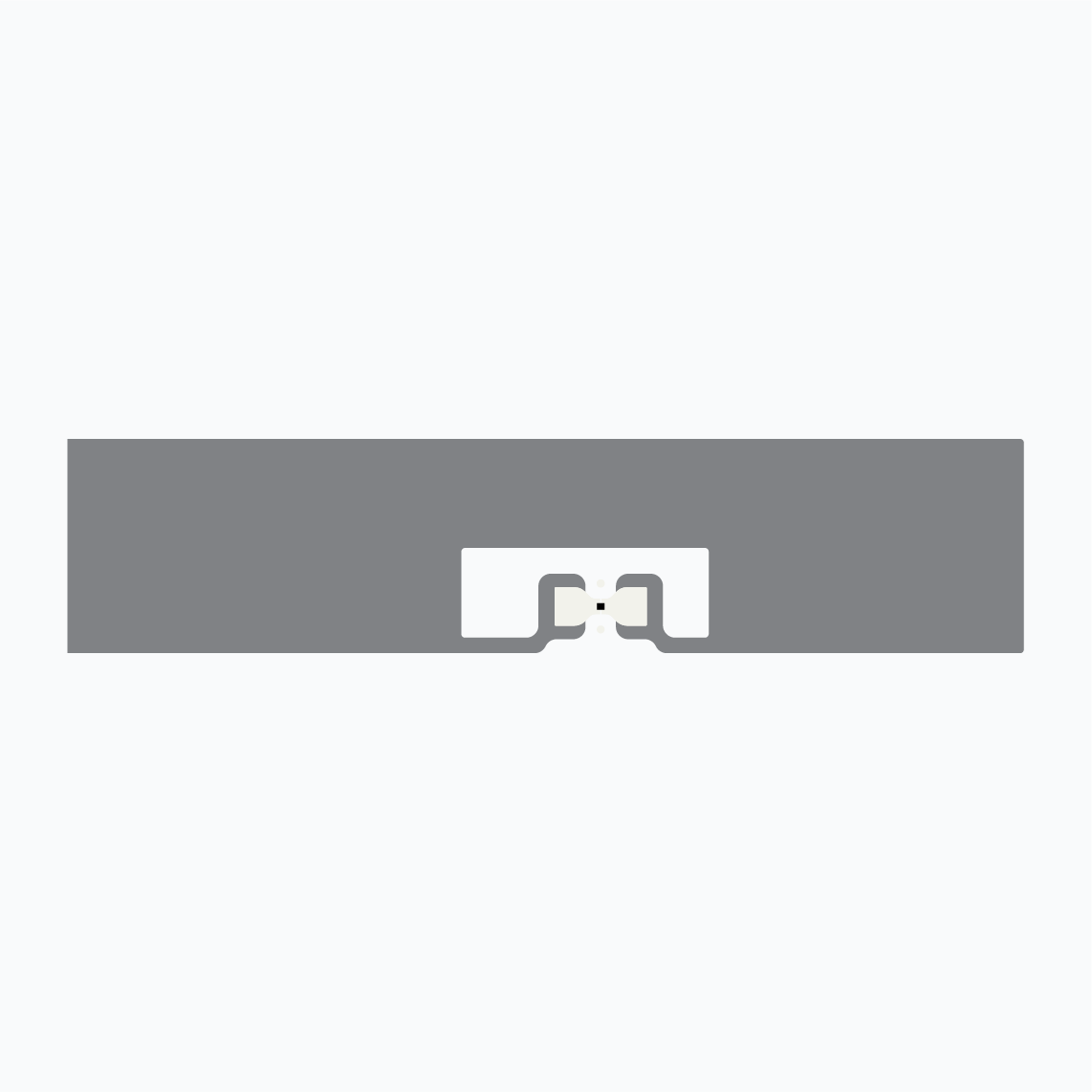

UHF RFID Inlay: AD-454r6-P

High performance on metal, liquids and plastic

Industry segments: Industrial Applications

AD-454r6-P from Avery Dennison Smartrac is a robust, high performing and incredibly versatile inlay solution for tagging hard to read surfaces. The Gen2 UHF RFID label is therefore perfectly suited for applications related to manufacturing, computers and electronics, and miscellaneous consumer goods.

AD-454r6-P comes with the Monza r6-P chip from Impinj featuring 128/96-bits of EPC memory, 32/64 bits of User Memory and a 48bit unique serialized TID Number. The sole delivery format is Pressure Sensitive Label.

Like all RFID products from Avery Dennison Smartrac, AD-454r6-P inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Technical features
Impinj Monza R6-P
Frequency Band
UHF 860 - 960 MHz
Antenna Dimensions 69.85 x 19.05 mm (2.75 x 0.75 in)
Die Cut Dimensions 70 x 19 mm / 2.75 x 0.75 in
EPC Memory 128 bits
TID Memory 48-Bit
Product Code Label / sticker RF100595 / IL-603792

Please find a comprehensive overview of all features in the data sheet.
