Industry segments: Apparel & Fashion, Healthcare, Logistics
AD-327 U9 inlays from Avery Dennison are ideally suited for a wide variety of RFID tagging applications, particularly those related to the areas of supply chain, inventory and logistics, apparel, and pharmaceutical & healthcare.

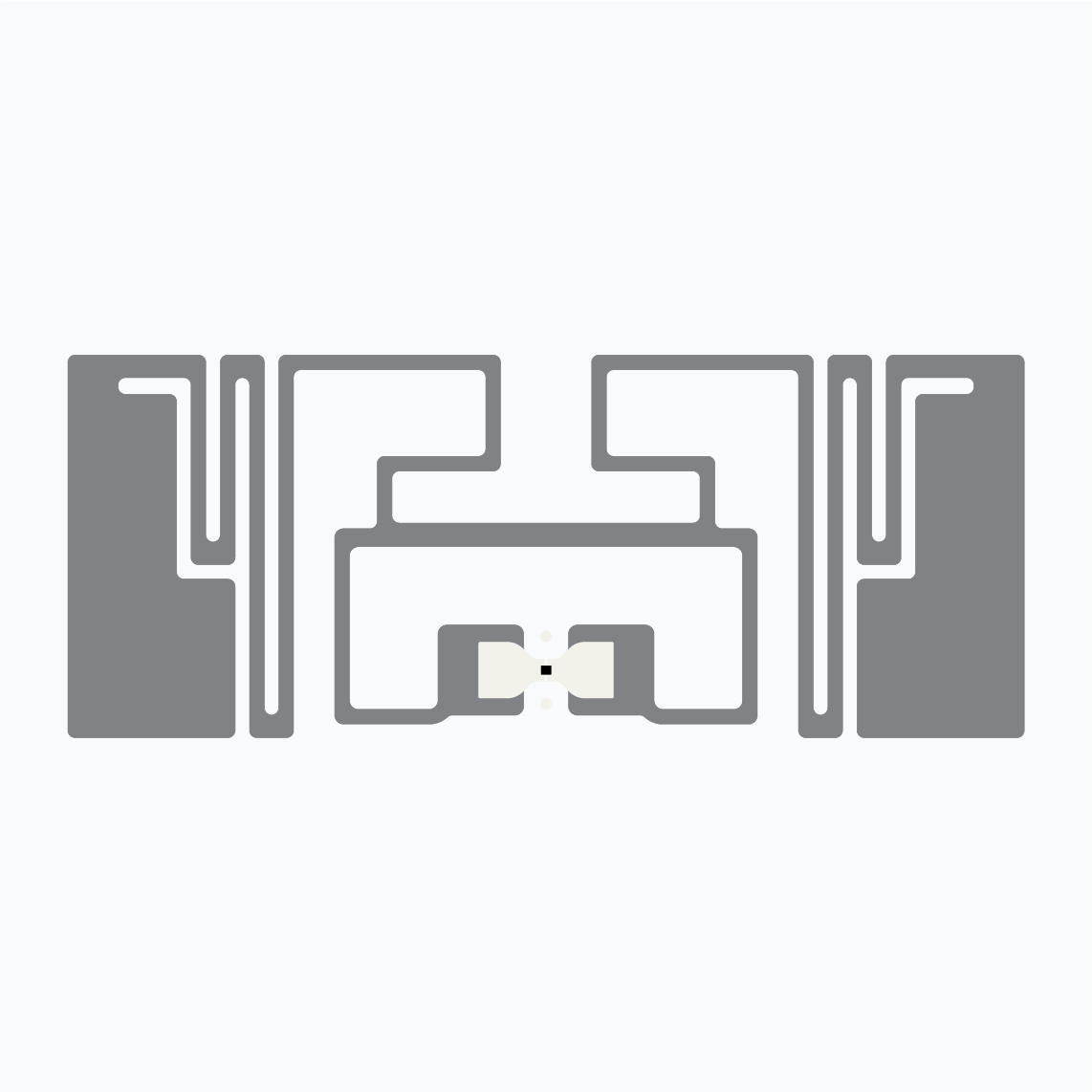

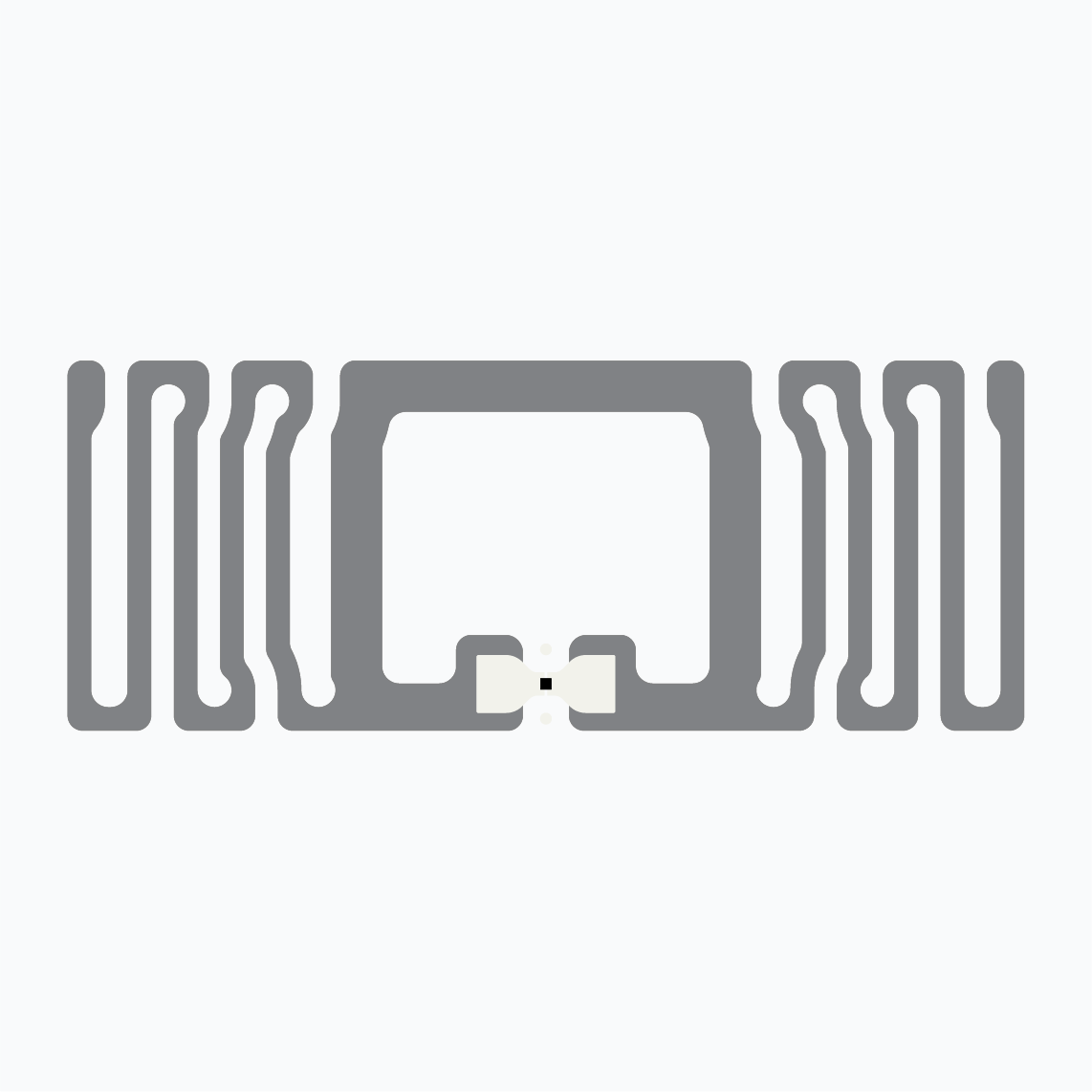

The Gen2 UHF RFID inlay’s 41 x 16mm design is optimized for outstanding performance in the ETSI frequency band (865-868 MHz) and features the UCODE 9 IC by NXP. The Gen2 UHF RFID inlay’s 42.5 x 17mm design is optimized for outstanding performance in the FCC frequency band (902-928 MHz) and features the UCODE 9 IC by NXP.
AD-327 U9 UCODE 9 chip features 96-bit of EPC memory and a 96-bit unique factory-locked TID number. A 48-bit unique serial number is factory encoded into the TID.

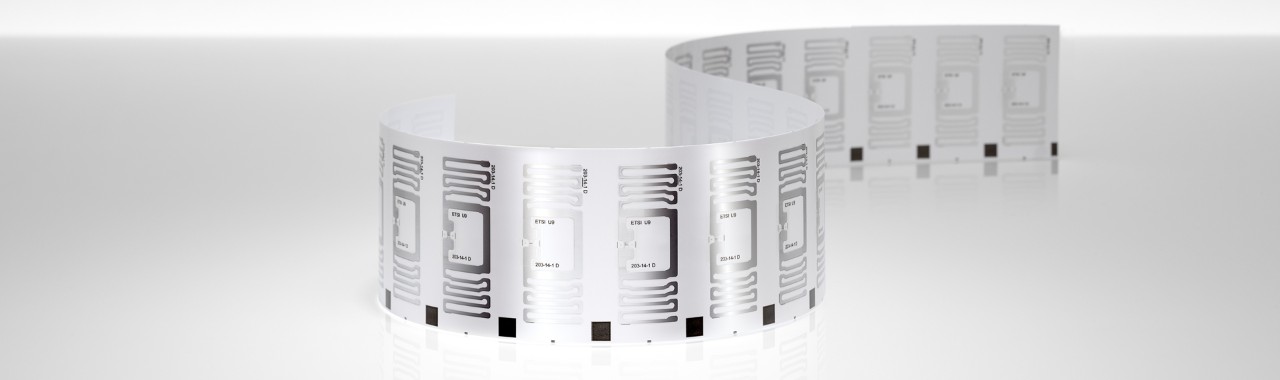

Delivery formats include dry, wet and paper inlay.
Like all RFID products from Avery Dennison, AD-327 U9 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

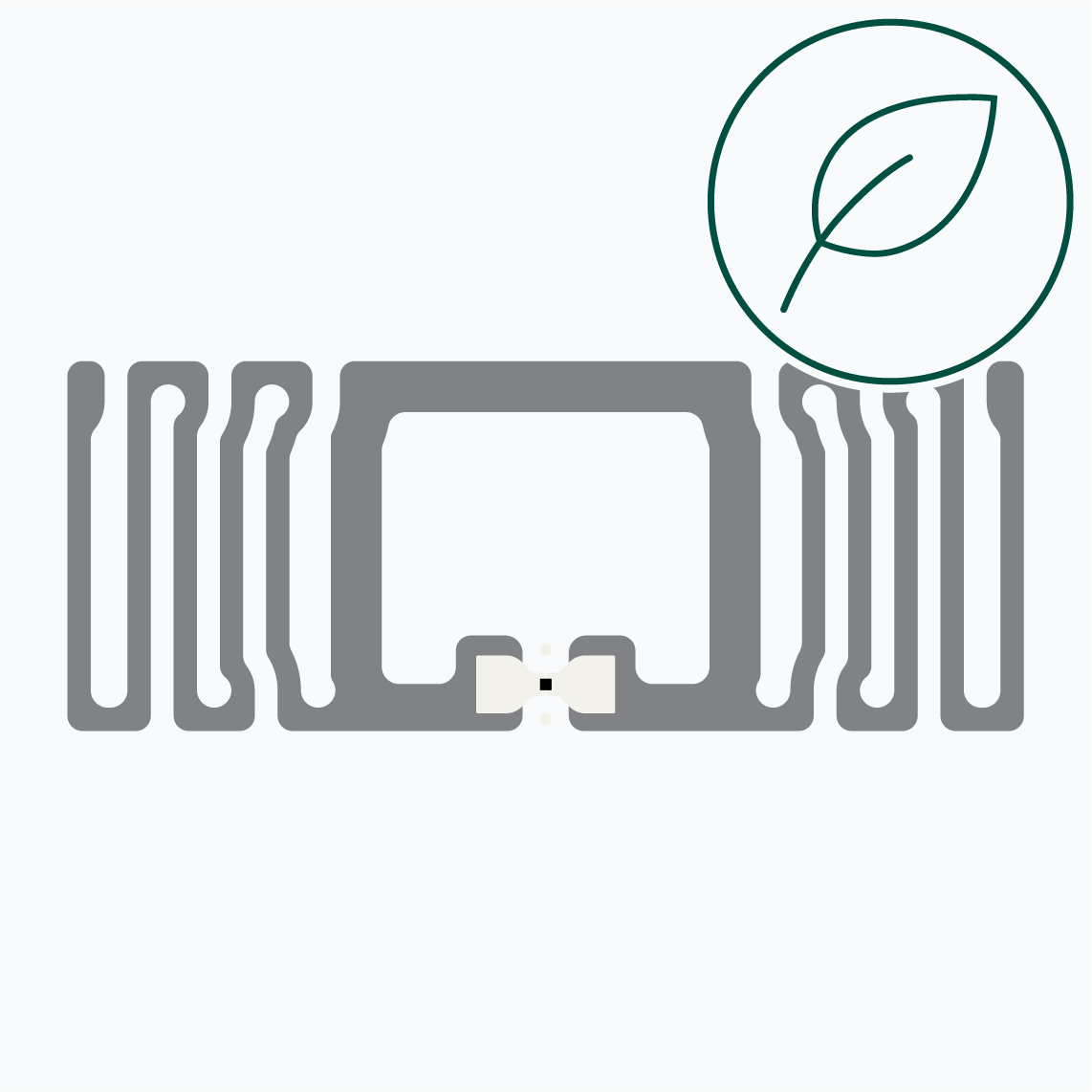

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Inlay is available in wet and label formats.
Please find a comprehensive overview of all features in the data sheet.
AD-327 U9 ETSI
AD-327 U9 ETSI Pure 95™
AD-327 U9 FCC
