AD-324u8  [UHF RFID tag and inlay]

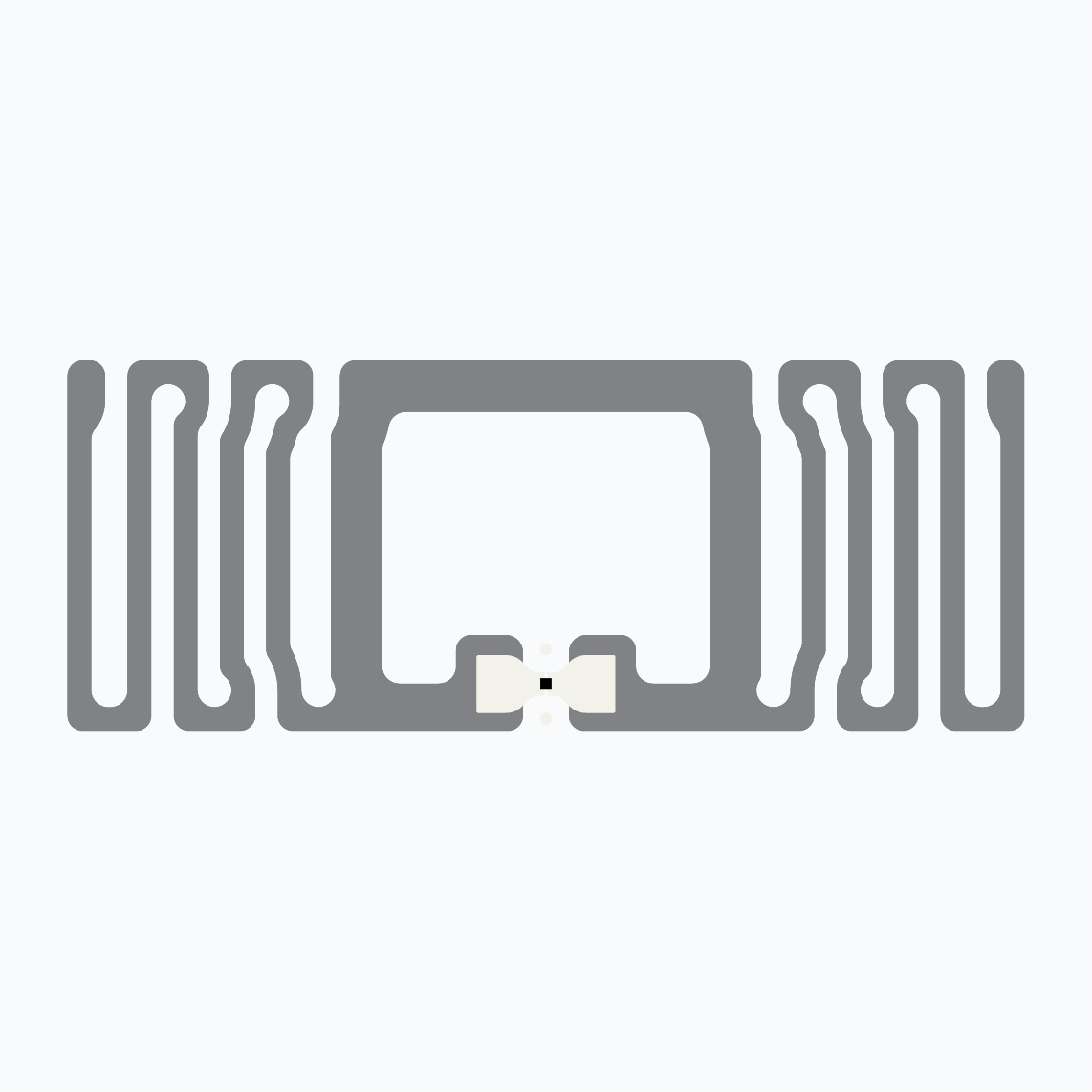

UHF RFID Inlay: AD-324u8

Excellent read range and versatility

Industry segments: Apparel & Fashion, Healthcare, Logistics

AD-324u8 inlays from Avery Dennison Smartrac are ideally suited for a wide variety of RFID tagging applications, particularly those related to the areas of supply chain, inventory & logistics, apparel, and pharmaceutical & healthcare.

The Gen2 UHF RFID inlay’s 41.4 x 16mm design is optimized for outstanding performance and features the UCODE 8 IC by NXP.

The UCODE 8 chip features 128 bits of EPC memory and 96 bit unique factory-locked TID number. A 48 bit unique serial number is factory-encoded into the TID. UCODE 8 supports all mandatory commands of EPC global specification V.2.0.1 including (Perma) LOCK and Kill Command.

Like all RFID products from Avery Dennison Smartrac, AD-324 U8 inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay: AD-324u8 FCC

AD-324u8 FCC

  • Chip: NXP UCODE 8
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    41 x 16 mm / 1.63 x 0.63 in
  • Die Cut Dimensions:
    44 x 19 mm / 1.75 x 0.75 in
  • EPC Memory: 128 bits
  • TID Memory: 96-Bit Tag IDentifier & 48-Bit
  • ARC Specification: F, G, Q, W2, W5, W6
  • Product Code:
    Dry inlay RF601478
    Wet inlay RF601480
    Label / sticker RF100606
Data sheet
UHF RFID Inlay: AD-324u8 ETSI WEL

AD-324u8 ETSI WEL

  • Chip: NXP UCODE 8
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    41 x 16 mm / 1.63 x 0.63 in
  • Die Cut Dimensions:
    44 x 19 mm / 1.75 x 0.75 in
  • EPC Memory: 128 bits
  • TID Memory: 96-Bit Tag IDentifier & 48-Bit
  • ARC Specification: -
  • Product Code:
    Dry inlay RF601063 / IL-603768
    Wet inlay RF601064 / IL-603769
    Label / sticker RF100472 / IL-603770
Data sheet
UHF RFID Inlay: AD-324u8 ETSI NEL

AD-324u8 ETSI NEL

  • Chip: NXP UCODE 8
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    16 x 41 mm / 0.63 x 1.63 in
  • Die Cut Dimensions:
    19 x 44 mm / 0.75 x 1.75 in
  • EPC Memory: 128 bits
  • TID Memory: 96-Bit Tag IDentifier & 48-Bit
  • ARC Specification: -
  • Product Code:
    Label / sticker RF100571 / IL-605907


Data sheet
