AD-312 U9 Pure 95™ [UHF RFID tag and inlay]

UHF RFID Inlay: AD-312 U9 Pure

High performing sustainable inlay

Industry segments: Apparel & FashionHealthcareLogistics

AD-312 U9 Pure 95™ inlays allow high performance on a variety of applications in retail, apparel, healthcare, logistics and supply chain.

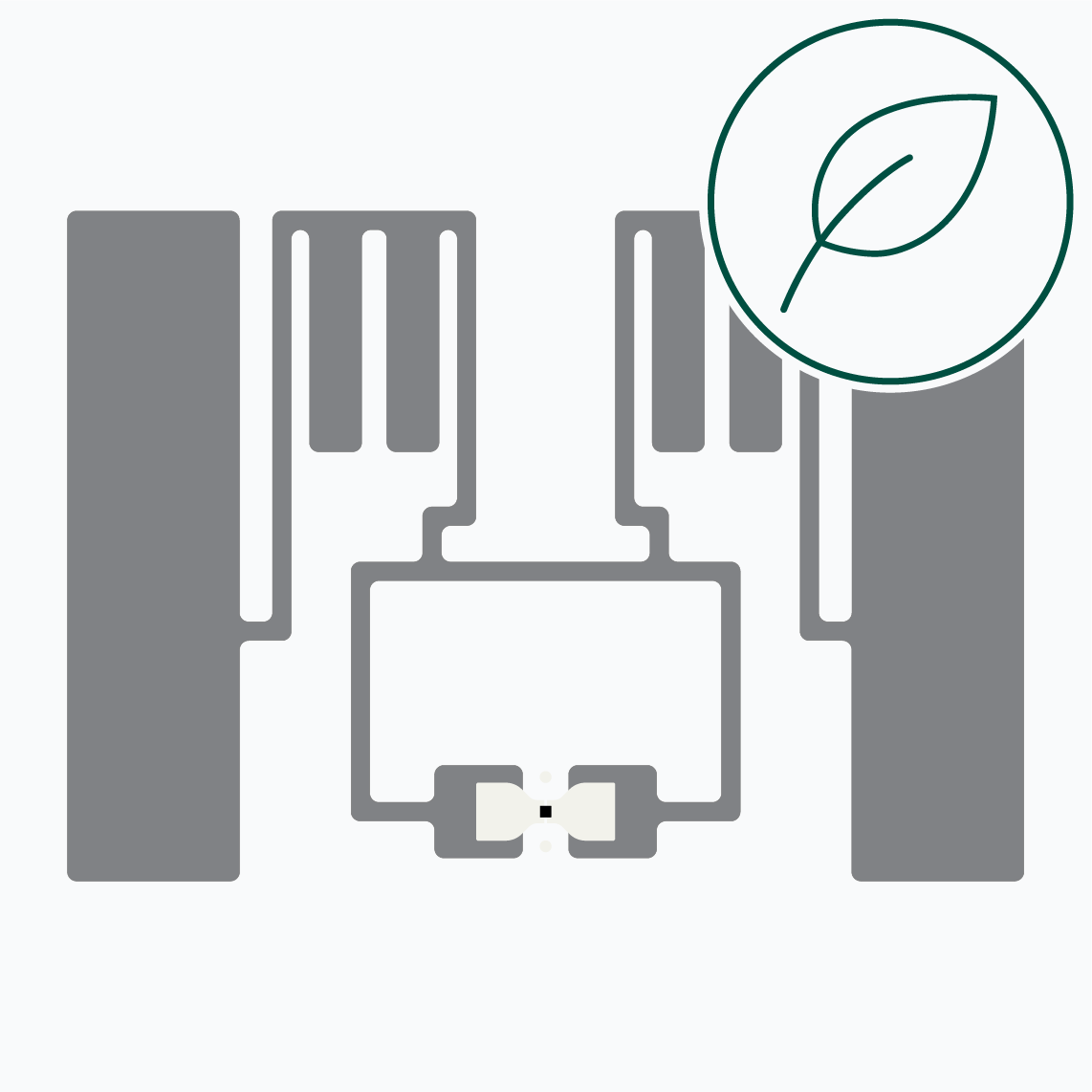

The AD-312 U9 Pure 95™ inlay antenna is produced with pure aluminum,  replacing the PET aluminum laminate that is traditionally used in standard antenna production. With a pure aluminum antenna, the inlay total construction is up to 95% PET-free in both wet inlay and label formats. A minimal amount of plastic-strap is used for the memory chip attachment.

The Gen 2 UHF RFID inlays 41.4 x 29 mm is optimized for broadband performance and features the NXP UCODE 9 IC with 96-bit of EPC memory as well as a 96-bit unique factory locked TID number. A 48-bit unique serial number is factory-encoded into the TID. Delivery formats include wet inlay and pressure sensitive labels.

AD Pure™ Product Line

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD-312 u9 Pure

AD-312 U9 Pure 95™

  • Chip: NXP UCode 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    41,40 x 29 mm / 1.63 x 1.14 in
  • Die cut dimensions:
    44,45 x 33 mm / 1.75 x 1.30 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: F, I, Q, W2, W5
  • Product code:
    Wet inlay RF603184 / IL-609724
    Label/sticker RF101676 / IL-609564
