AD-302 M730  [UHF RFID tag and inlay]

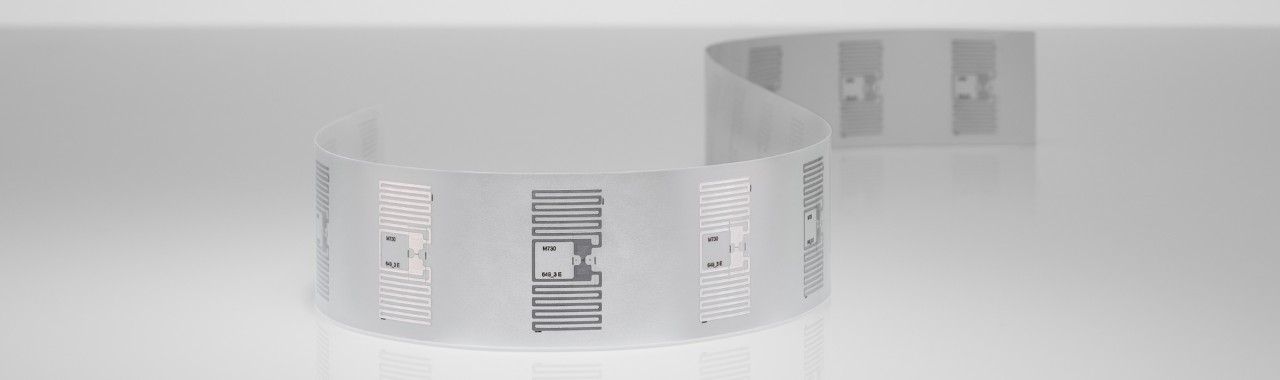

UHF RFID Inlay: AD-302 M730

Ideal for small item-level tagging

Industry segments: Apparel & Fashion, Healthcare

Our AD-302 M730 inlays and tags are optimized for accessory and cosmetics applications, offering excellent performance and superior close-coupling features.

AD-302 M730 products are available with the Impinj M730 and M750 chips. Inlays with M730 chips offer a unique TID, enable pre-serialized EPC and are 100% performance tested. Inlays with M750 offer additional features such as add on user memory and on-demand memory configuration as well as a kill function and easy access control to change tag information for stored data, if required. AD-302 M730 products are available in dry, wet and paper label delivery formats.

Our inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD-302 M730

AD-302 M730

  • Chip: Impinj M730
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    33 x 18 mm / 1.299 x 0.709 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: Q
  • Product code:
    Dry+ inlay RF602379 / IL-606389
    Wet inlay RF602380 / IL-606183
    Label/sticker RF101084 / IL-605225
