UHF RFID Inlay: AD-301

UHF RFID Inlay: AD-301

Ideal for tagging smaller products

Industry segments: Apparel and Fashion, Healthcare

AD-301r6 and AD-301r6-P inlays from Avery Dennison are petite, yet powerful solutions recommended for item level tagging of smaller sized products like children accessories, fashion, jewelry and sunglasses as well as healthcare and pharmaceutical items.

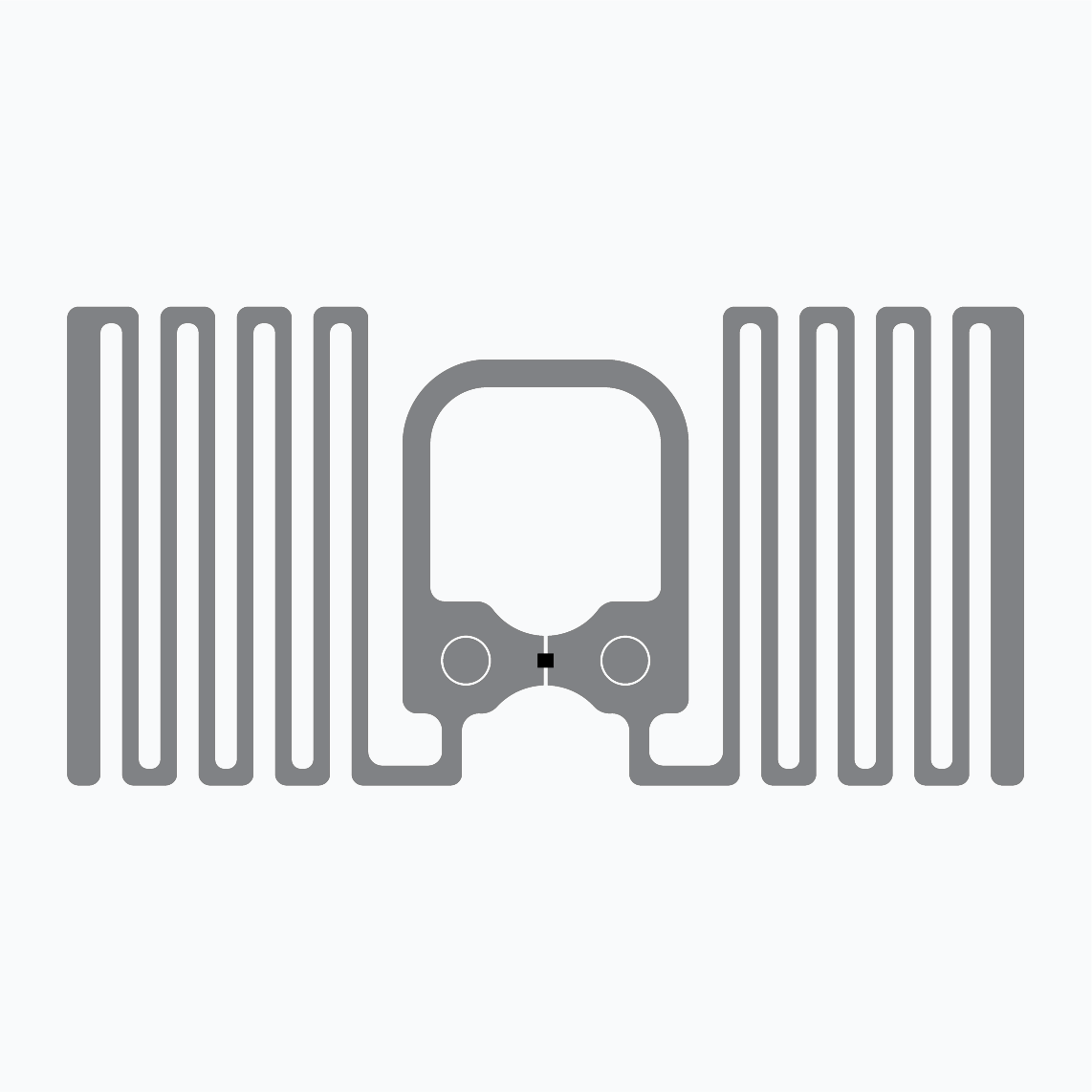

Both Gen2 UHF RFID inlays share a 30 x 15mm antenna that is a global design operating satisfactorily in both FCC and ETSI frequency bands with maximum performance at 902-928 MHz (FCC). The design is available with two chip options: Monza R6 and Monza R6-P.

AD-301r6 with the Impinj Monza R6 IC comes with 96 bits of EPC memory and a 48bit unique serialized TID Number, while AD-301r6-P with the Impinj Monza R6-P is available with several EPC and user memory options. In addition,The R6-P based inlays provides additional features including kill and access password protection to ensure user privacy. Both AD-301r6 and AD-301r6-P are available in Dry Inlay, Wet Inlay and Pressure Sensitive Label delivery formats.

Like all RFID products from Avery Dennison Intelligent Labels, AD-301r6 and AD-301r6-P inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD-301r6

AD-301r6 WEL

  • Chip: Impinj Monza R6
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die Cut Dimensions:
    33 x 18 mm / 1.30 x 0.70 in
  • EPC Memory: 96 bits
  • TID Memory: 48-Bit
UHF RFID Inlay: AD-301r6 NEL

AD-301r6 NEL

  • Chip: Impinj Monza R6
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    15 x 30 mm / 0.6 x 1.2 in
  • Die Cut Dimensions:
    18 x 33 mm / 0.70 x 1.30 in
  • EPC Memory: 96 bits
  • TID Memory: 48-Bit
UHF RFID Inlay: AD-301r6 -P

AD-301r6-P WEL

  • Chip: Impinj Monza R6-P
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die Cut Dimensions:
    18 x 33 mm / 0.70 x 1.30 in
  • EPC Memory: 128 bits
  • TID Memory: 48-Bit
UHF RFID Inlay:  AD-301r6-P NEL

AD-301r6-P NEL

  • Chip: Impinj Monza R6-P
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    15 x 30 mm / 0.6 x 1.2 in
  • Die Cut Dimensions:
    18 x 33 mm / 0.70 x 1.30 in
  • EPC Memory: 128 bits
  • TID Memory: 48-Bit
