AD-191r6-P  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-190u8

Superior read range on a wide range of dielectrics

Industry segments: Apparel & Fashion, Beauty & Personal Care, Healthcare

AD-191r6-P UHF RFID inlays from Avery Dennison Smartrac are recommended for tagging a wide range of smaller products including apparel, fashion jewelry, sunglasses, and healthcare products.

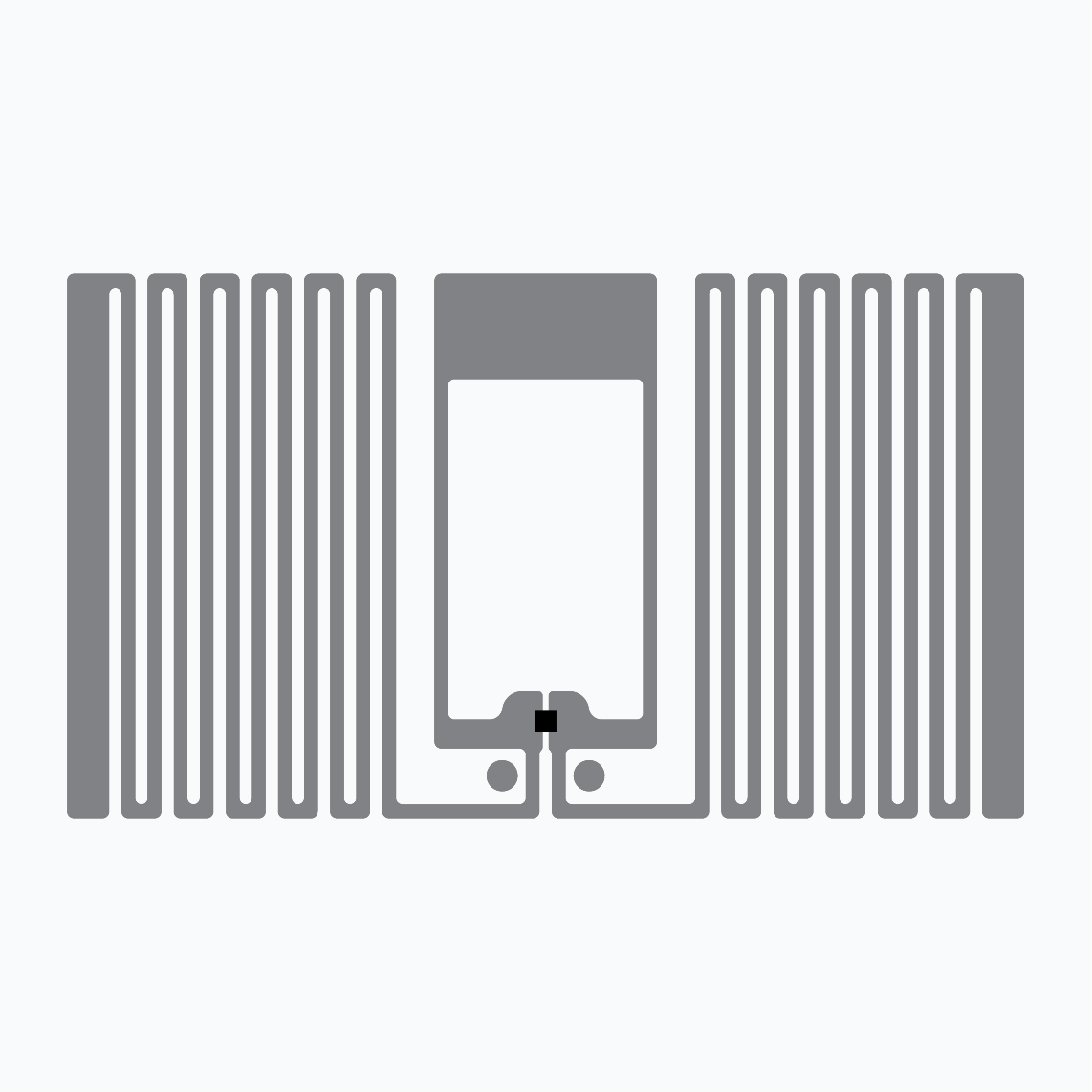

The 22 x 12.5 mm antenna is a global design with excellent broadband performance (860-960 MHz) that can achieve up to 4 meters read distance on tagged surfaces such as cardstock and plastic.

AD-191r6-P inlays are equipped with the Impinj Monza® R6-P chip, which provides flexibility in its memory structure with interchangeable EPC (128/96), and user memory (32/64). The R6-P chip also provides access and kill password controls to prevent unauthorized write access to the IC and allow deactivation of the IC. Available delivery formats include Dry Inlay and Wet Inlay.

Like all RFID products from Avery Dennison Smartrac, AD-191r6-P inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Technical features

Chip
Impinj Monza R6-P
Frequency Band
UHF 860 - 960 MHz
Antenna Dimensions 22 x 13 mm / 0.87 x 0.49 in
Die Cut Dimensions 24 x 16 mm / 0.95 x 0.61 in
EPC Memory 128 bits
TID Memory 48-Bit
Product Code Dry inlay RF601419 / IL-603741
Wet inlay RF601420 / IL-603742

Please find a comprehensive overview of all features in the data sheet.
