AD-190u8 [UHF RFID tag and inlay]

Exceptional performance across a wide range of dielectrics

Industry segments: Apparel and Fashion, Beauty & Personal Care, Healthcare

AD-190u8 RAIN UHF RFID inlays from Avery Dennison Smartrac are recommended for tagging a wide range of smaller products.

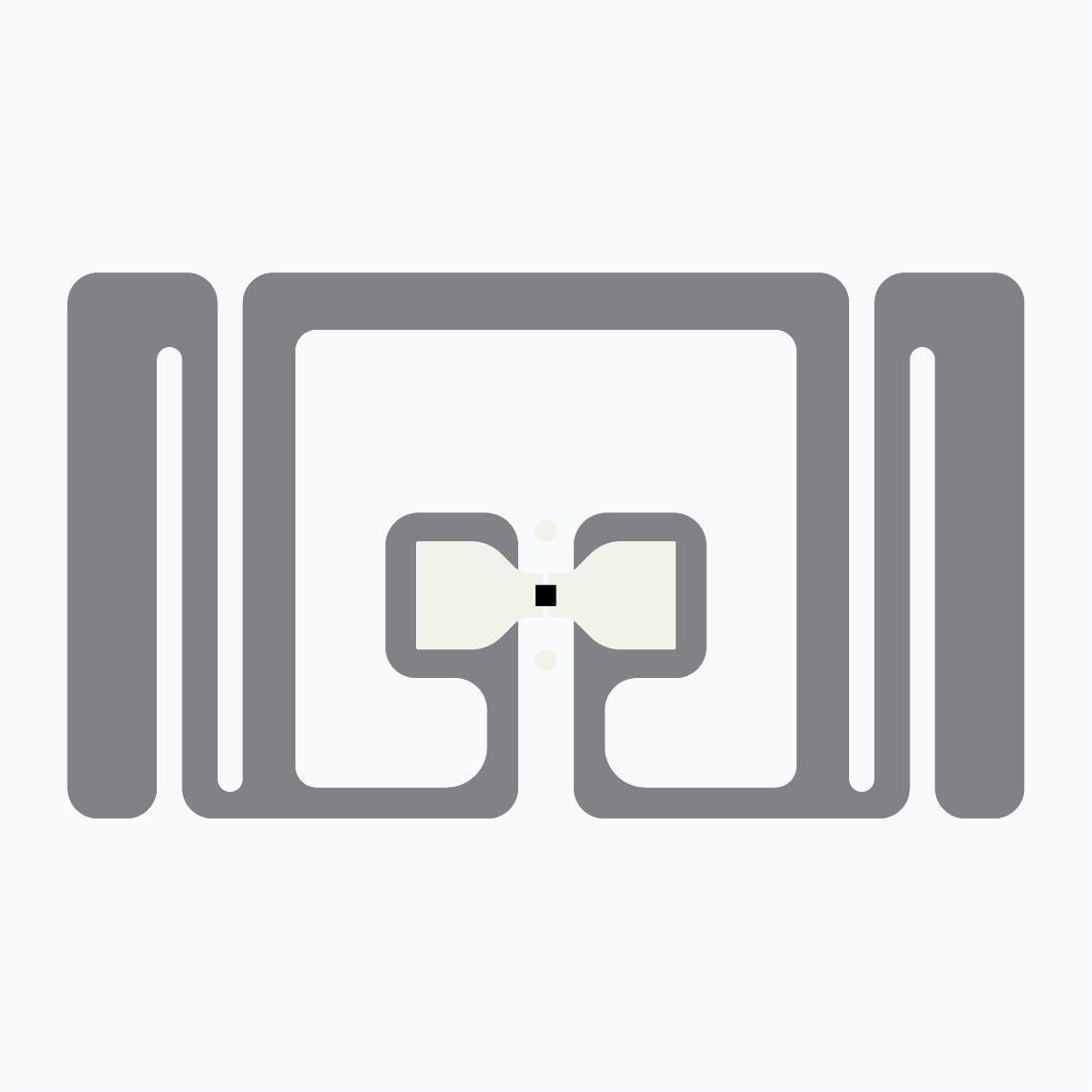

The 22 x 12.5 mm antenna is a global design with excellent broadband performance (860-930 MHz) that can achieve up to 3 meters read distance on popular beauty items such as fashion jewelry and cosmetics, as well as pharmaceuticals.

AD-190u8 inlays are equipped with a UCODE 8 ICs from NXP, featuring 128 bits of EPC memory and 48-bit unique serialized TID number. Delivery formats include dry inlay, wet inlay, and SmartFace Label.

Like all RFID products from Avery Dennison Smartrac, AD-190u8 inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Technical features
Chip	NXP UCODE 8
Frequency Band	UHF 860 - 960 MHz
Antenna Dimensions	22 x 13 mm / 0.87 x 0.49 in
Die Cut Dimensions	24 x 16 mm / 0.95 x 0.61 in
Die Cut Dimensions	32 x 15 mm / 1.25 x 0.60 in
EPC Memory	128 bits
TID Memory	96-Bit Tag IDentifier & 48-Bit
Product Code	Dry inlay RF601393
	Wet inlay RF601283
	Label / sticker RF100600

Please find a comprehensive overview of all features in the data sheet.
