UHF RFID Inlay: Eagle™

UHF RFID Inlay: Eagle™
UHF RFID Inlay: Eagle™

Top read range for retail applications

Industry segments: Apparel and Fashion, Logistics

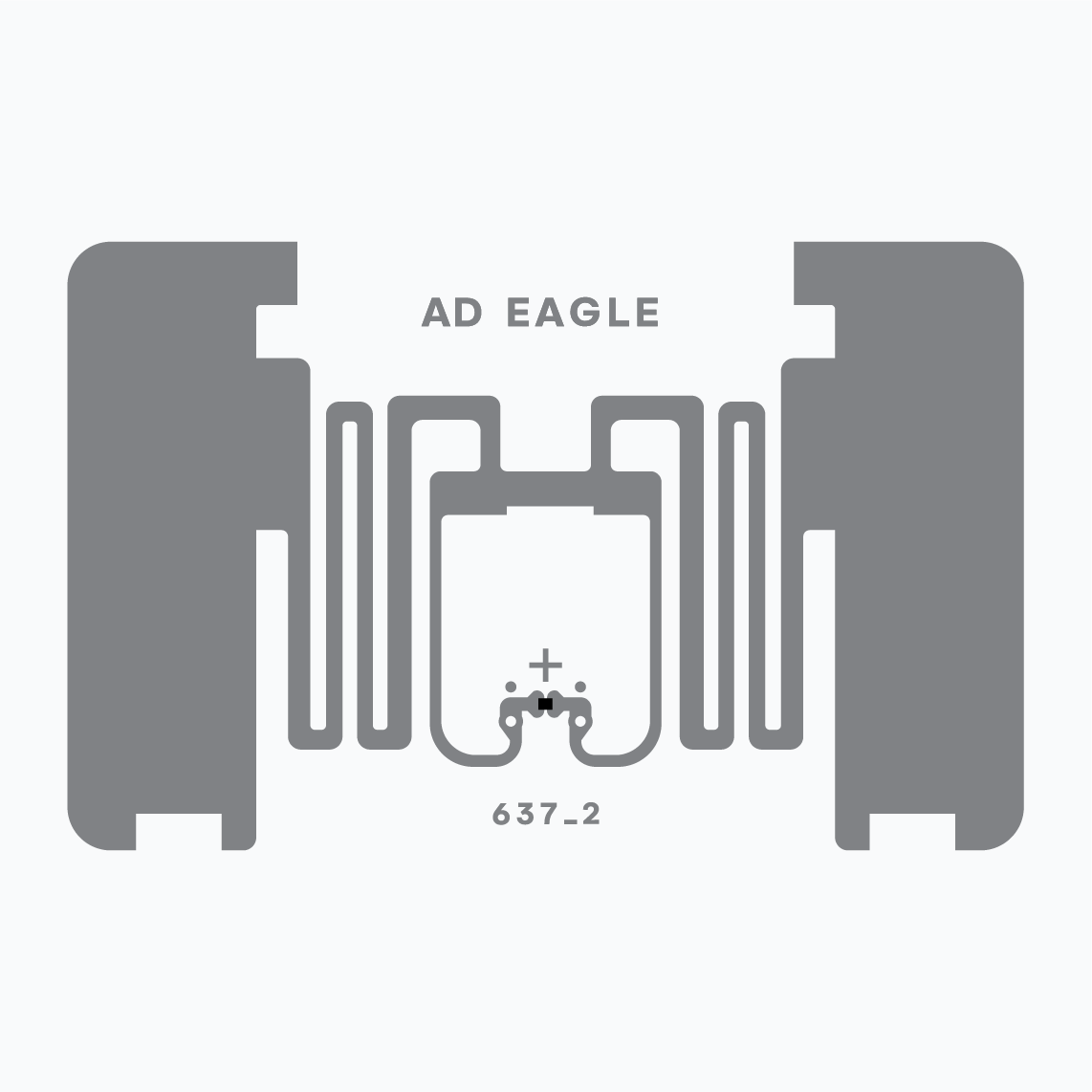

Smartrac’s Eagle™ is one of the smallest global RAIN RFID inlays for retail applications, having a compact size 44 x 28 mm which can be easily converted into end-application usage, available in dry and paper-tag delivery formats. Eagle equipped with NXP UCODE 8 offers the same memory size and typical IC features as NXP UCODE 7. Furthermore, it offers a Self Adjust feature to maximize product performance in challenging environments and has an improved read and write sensitivity and faster encoding speed compared to NXP UCODE 7. The chip has an integrated Brand Identifier function to prove product authenticity and a memory safeguard system to protect business data.

Eagle with the NXP UCODE 8 IC, used in retail applications, is the smallest inlay with global performance currently available on the market that has passed ARC categories A, B, C, D, F, G, I, K, M and Q.

Smartrac’s inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.

Technical Features

Chip
NXP UCODE 8
Frequency Band
UHF 860 - 960 MHz
Antenna Dimensions 44 x 28 mm / 1.70 x 1.10 in
Die Cut Dimensions 47 x 31 mm / 1.90 x 1.20 in
EPC Memory 128 bits
TID Memory available

Please find a comprehensive overview of all features in the data sheet.
