AD Burst (AD-23x Slim) [UHF RFID tag and inlay]

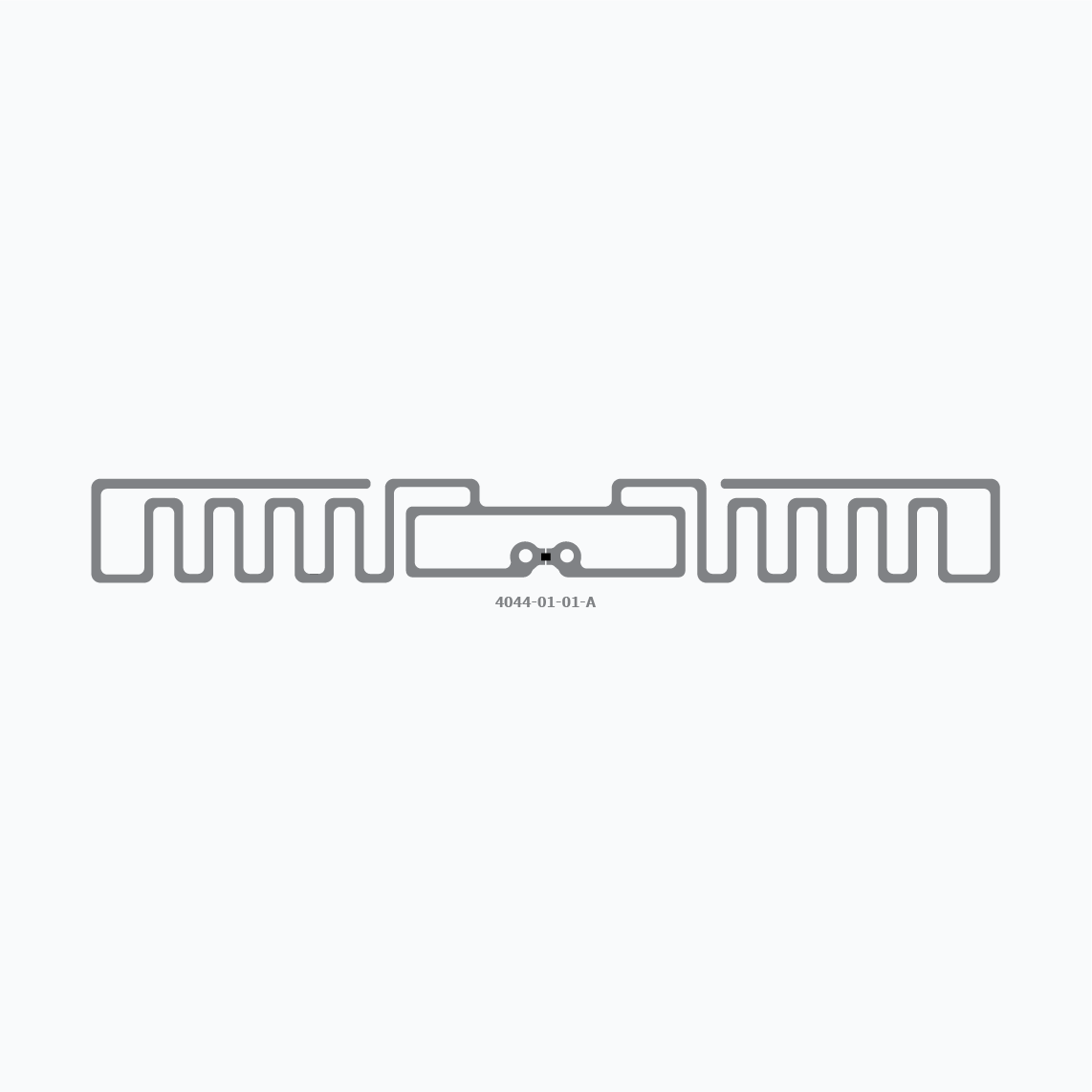

UHF RFID Inlay: AD Burst

Excellent performance on a wide variety of RFID tagging applications

Industry segments: Apparel and General Retail, Industrial Applications

AD Burst inlays and tags from Avery Dennison provide outstanding global performance in die cut footprint of 73 x 13.5 mm / 2.87 x 0.53 in.

AD Burst is optimized for maximum performance in retail and apparel segments, but as a versatile product, it also performs well in some industrial applications. The inlays are suitable for a wide variety of RFID tagging applications, including supply chain, inventory and logistics, apparel, and home essentials, as well as apparel, electronics, sporting goods, and other general merchandise.

Like all RFID products from Avery Dennison, AD Burst inlays are manufactured according to the industry’s highest quality standards.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD-23x U9 Slim

AD-23x U9 Slim

  • Chip: NXP UCode 9
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    70 x 10,50 mm / 2.756 x 0.413 in
  • Die cut dimensions:
    73 x 13,50 mm / 2.874 x 0.532 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC Specification: F, G, I, J, K, L, M, N, Q, W1, W2, W3, W4, W5, W6, Y
  • Product code:
    Dry+ inlay RF602627NPD
    Wet inlay RF602628NPD
    Label/sticker RF101217NPD
UHF RFID Inlay:  AD Burst M830

AD Burst M830

  • Chip: Impinj M830
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    70 x 10,50 mm / 2.756 x 0.413 in
  • Die cut dimensions:
    73 x 13,50 mm / 2.874 x 0.532 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC Specification: -
  • Product code for Direct Chip Attach (DCA)
    Dry inlay 3009587 / IL-609981
    Wet inlay 3009588 / IL-609986
    Label/sticker 3009589 / IL-609988
  • Product code for Strap Attach (SA)
    Dry+ inlay IL-609838, IL-609837
    Wet inlay IL-609840, IL-609861
    Label/sticker IL-609862, IL-610355
UHF RFID Inlay:  AD Burst M850

AD Burst M850

  • Chip: Impinj M850
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    70 x 10,50 mm / 2.756 x 0.413 in
  • Die cut dimensions:
    73 x 13,50 mm / 2.874 x 0.532 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC Specification: -
  • Product code for Direct Chip Attach (DCA)
    Dry inlay IL-610202
    Wet inlay IL-610203
    Label/sticker IL-610204
  • Product code for Strap Attach (SA)
    Dry+ inlay RF603179NPD / IL-609954
    Wet inlay RF603180NPD / IL-609955
    Label/sticker RF101675NPD / IL-609956, RF101716 / IL-610356
