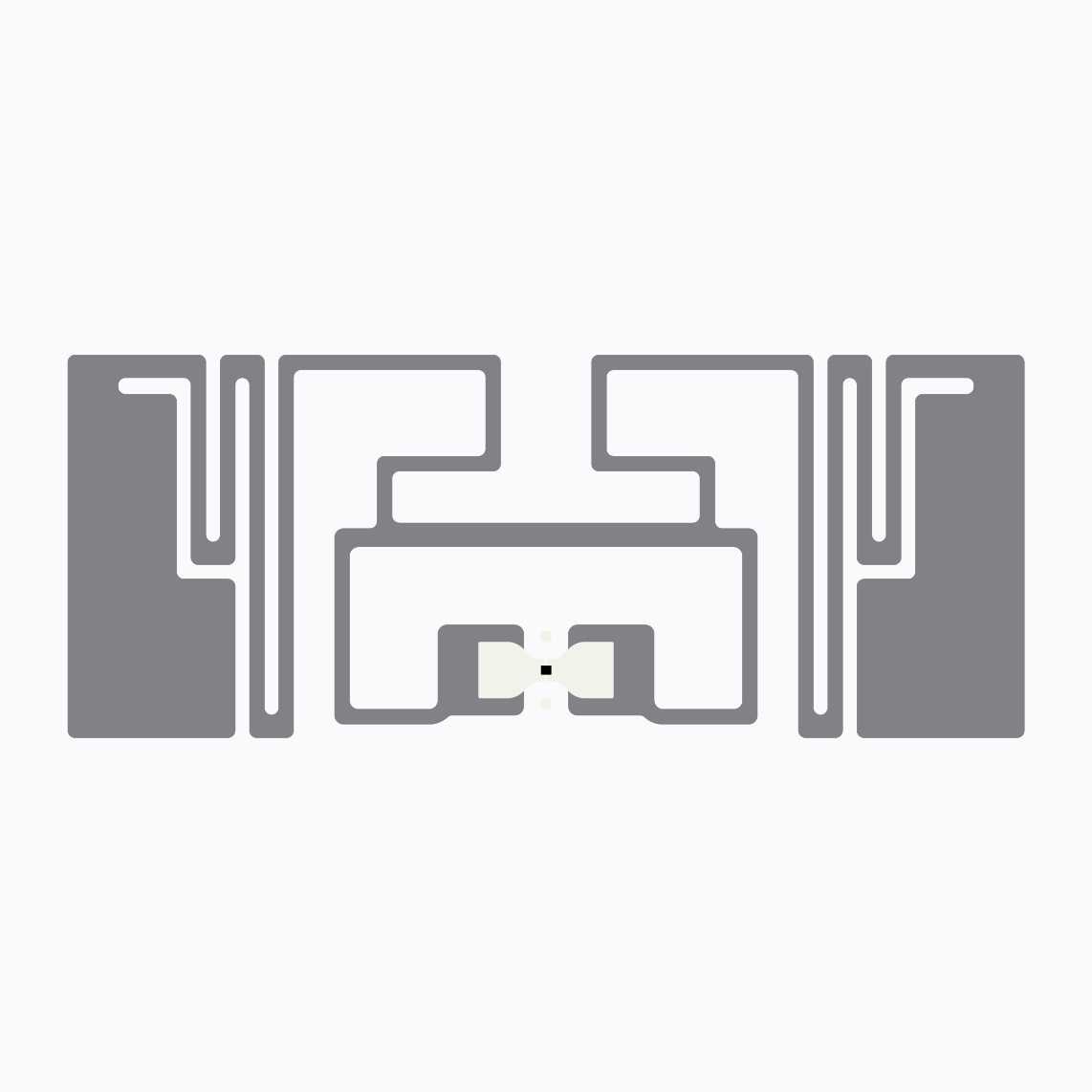

AD Bolt (AD-32x) [UHF RFID tag and inlay]

Superior performance across a wide range of dielectrics

Industry segments: Apparel & Fashion, Healthcare, Logistics

AD Bolt inlays from Avery Dennison Smartrac are ideally suited for a wide variety of RFID tagging applications, particularly those related to the areas of supply chain, inventory and logistics, apparel, and pharmaceutical & healthcare.

AD Bolt inlays and tags come with NXP UCODE 9 chips which feature 96-bit of EPC memory and a 96-bit unique factory-locked TID number. A 48-bit unique serial number is factory encoded into the TID.

The Gen2 UHF RFID inlay’s 41 x 16mm design is optimized for outstanding performance in the ETSI frequency band (865-868 MHz), and the Gen2 UHF RFID inlay’s 42.5 x 17mm design is optimized for outstanding performance in the FCC frequency band (902-928 MHz).

To learn more about a specific design within the AD Bolt family, click on the corresponding link to access a product data sheet of that item.

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.Like all RFID products from Avery Dennison, AD Bolt inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

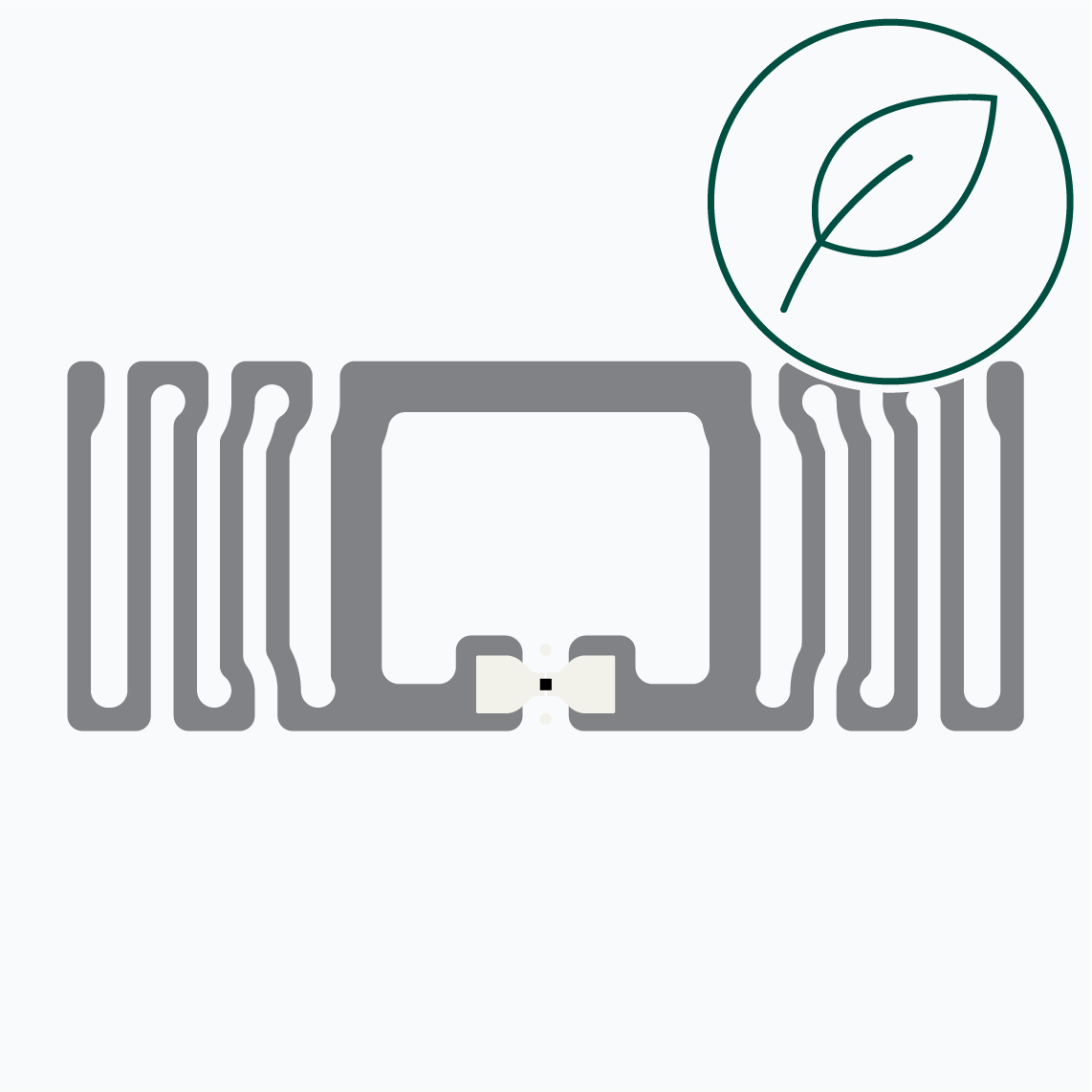

AD Pure™ Product Line

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in dry, wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

AD-320u7 FCC

Chip: NXP UCode 7
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41 x 16 mm / 1.63 x 0.63 in
Die cut dimensions:
44 x 19 mm / 1.75 x 0.75 in
EPC memory: 128 bits
TID memory: 96-Bit Tag IDentifier & 48-Bit
ARC specification: -
Product code:
Label / sticker RF100229

Data sheet

AD-320u7 ETSI

Chip: NXP UCode 7
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41 x 16 mm / 1.63 x 0.63 in
Die cut dimensions:
44 x 19 mm / 1.75 x 0.75 in
EPC memory: 128 bits
TID memory: 96-Bit Tag IDentifier & 48-Bit
ARC specification: -
Product code:
Label / sticker RF100325

Data sheet

AD-321r6 FCC

Chip: Impinj Monza R6
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41 x 16 mm / 1.63 x 0.63 in
Die cut dimensions:
44 x 19 mm / 1.75 x 0.75 in
EPC memory: 96 bits
TID memory: 48-Bit
ARC specification: -
Product code:
Dry inlay RF600599
Wet inlay RF600600
Label / sticker RF100314

Data sheet

AD-321r6-P FCC

Chip: Impinj Monza R6-P
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41 x 16 mm / 1.63 x 0.63 in
Die cut dimensions:
44 x 19 mm / 1.75 x 0.75 in
EPC memory: 128 bits
TID memory: 48-Bit
ARC specification: -
Product code:
Dry inlay RF600789 / IL-604425
Wet inlay RF600788 / IL-604426
Label / sticker RF100377 / IL-606568

Data sheet

AD-321r6-P ETSI

Chip: Impinj Monza R6-P
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41 x 16 mm / 1.63 x 0.63 in
Die cut dimensions:
44 x 19 mm / 1.75 x 0.75 in
EPC memory: 128 bits
TID memory: 48-Bit
ARC specification: -
Product code:
Label / sticker RF100370 / IL-606974

Data sheet

AD-324u8 FCC

Chip: NXP UCODE 8
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41 x 16 mm / 1.63 x 0.63 in
Die cut dimensions:
44 x 19 mm / 1.75 x 0.75 in
EPC memory: 128 bits
TID memory: 96-Bit Tag IDentifier & 48-Bit
ARC specification: F, Q, W2, W5, W6
Product code:
Dry inlay RF601478
Wet inlay RF601480
Label / sticker RF100606

Data sheet

AD-324u8 ETSI WEL

Chip: NXP UCODE 8
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41 x 16 mm / 1.63 x 0.63 in
Die cut dimensions:
44 x 19 mm / 1.75 x 0.75 in
EPC memory: 128 bits
TID memory: 96-Bit Tag IDentifier & 48-Bit
ARC specification: -
Product code:
Dry inlay RF601063 / IL-603768
Wet inlay RF601064 / IL-603769
Label / sticker RF100472 / IL-603770

Data sheet

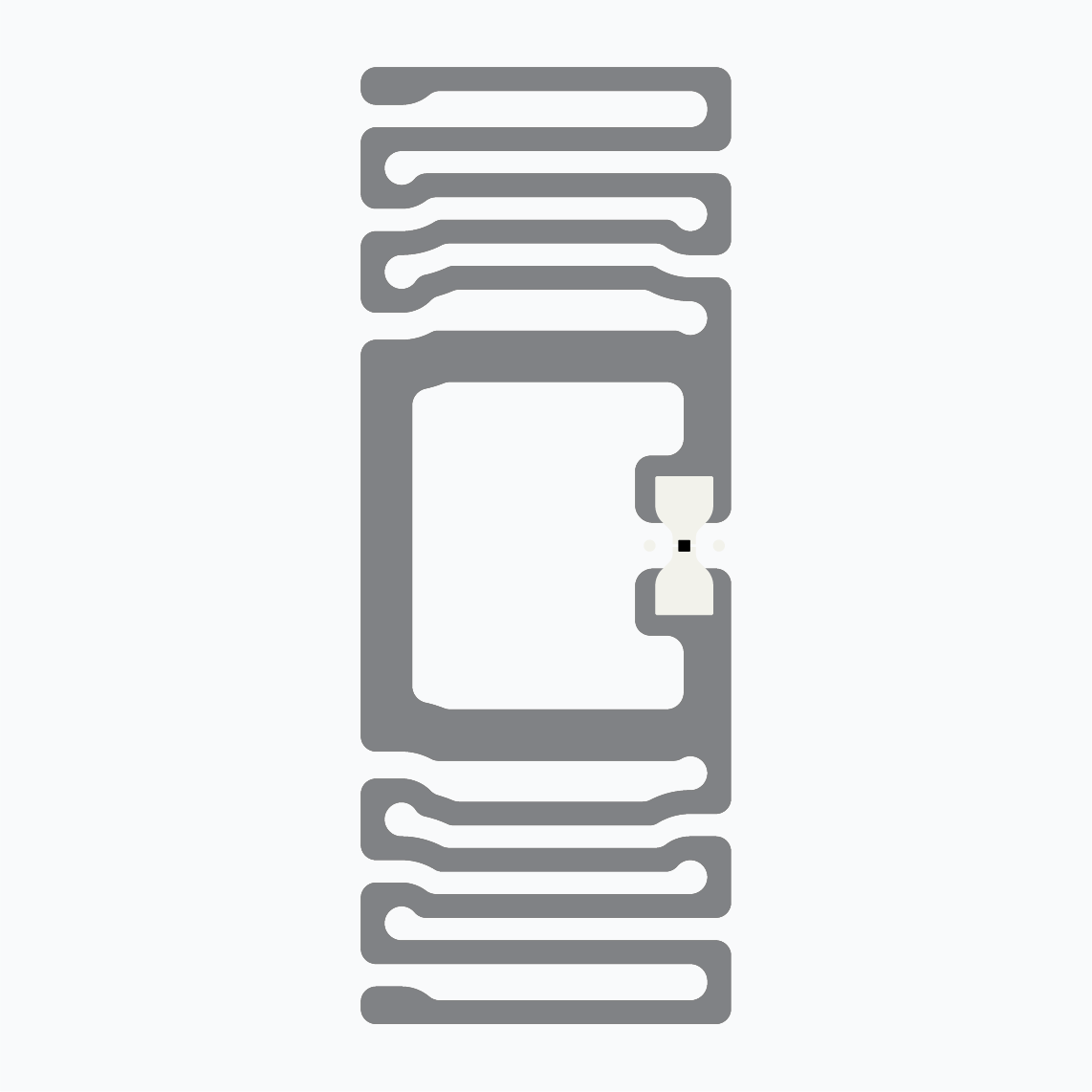

AD-324u8 ETSI NEL

Chip: NXP UCODE 8
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
16 x 41 mm / 0.63 x 1.63 in
Die cut dimensions:
19 x 44 mm / 0.75 x 1.75 in
EPC memory: 128 bits
TID memory: 96-Bit Tag IDentifier & 48-Bit
ARC specification: -
Product code:
Label / sticker RF100571 / IL-605907

Data sheet

AD-325 M730 FCC

Chip: Impinj M730
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
43 x 17 mm / 1.67 x 0.67 in
Die cut dimensions:
45 x 19 mm / 1.75 x 0.75 in
EPC memory: 128 bits
TID memory: 96-bit / 48-bit unique serial number
ARC specification: F, Q, W2, W5
Product code:
Dry+ inlay RF602428 / IL-605969
Wet inlay RF602429 / IL-607627
Label/sticker RF101106 / IL-606127

Data sheet

AD-327 U9 ETSI

Chip: NXP UCode 9
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41 x 16 mm / 1.63 x 0.63 in
Die cut dimensions:
44 x 19 mm / 1.75 x 0.75 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC specification: -
Product code:
Dry inlay RF602248 / IL-605279
Wet inlay RF602249 / IL-605625
Label/sticker RF101036 / IL-605226

Data sheet

AD-327 U9 ETSI Pure 95™

Chip: NXP UCode 9
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41 x 16 mm / 1.63 x 0.63 in
Die cut dimensions:
44 x 19 mm / 1.75 x 0.75 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC spectification: -
Product code:
Wet inlay RF602351 / IL-605264
Label/sticker RF101072 / IL-606783
Label/sticker RF101073 / IL-605485

Data sheet

AD-327 U9 FCC

Chip: NXP UCode 9
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
42,50 x 17 mm / 1.67 x 0.67 in
Die cut dimensions:
44,50 x 19 mm / 1.75 x 0.75 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC specification: F, Q, W5
Product code:
Dry+ inlay RF602457 / IL-606179
Wet inlay RF602458 / IL-605967
Label/sticker RF101125 / IL-607099

Data sheet

AD Bolt U9 FCC

Chip: NXP UCode 9
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
42,50 x 17 mm / 1.67 x 0.67 in
Die cut dimensions:
44,50 x 19 mm / 1.75 x 0.75 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC specification: F, Q, W2, W5
Product code:
For 40# Paper:
Dry+ inlay RF603117 / IL-609469
Wet inlay RF603119 / IL-609470
Label/sticker RF101579 / IL-609468
Label/sticker RF101640 / IL-609599

For Opaque PET:
Dry+ inlay IL-610222
Wet inlay IL-610223
