Industry segments: Apparel & Fashion, Industrial Applications
AD-23x U9 inlays from Avery Dennison provide maximum performance on a given footprint of 70 x 14.5 mm. Leveraging the capabilities of NXP’s UCODE 9 chip, the Gen2 UHF RFID inlays are suitable for a wide variety of RFID tagging applications, including supply chain, inventory and logistics, apparel and home essentials.
AD-23x U9 inlays feature 96-bit of EPC memory and a 96-bit unique factory locked TID number. A 48-bit unique serial number is factory-encoded into the TID. Delivery formats include dry, wet and pressure sensitive label.
Like all RFID products from Avery Dennison, AD-23x U9 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.
This inlay is part of the ‘AD Pure’ range, Avery Dennison's portfolio of inlays with a pure aluminum antenna, and the inlay´s total construction with up to 95% PET-free in both wet inlay and SmartFace™ label formats.
Please find a comprehensive overview of all features in the data sheet.

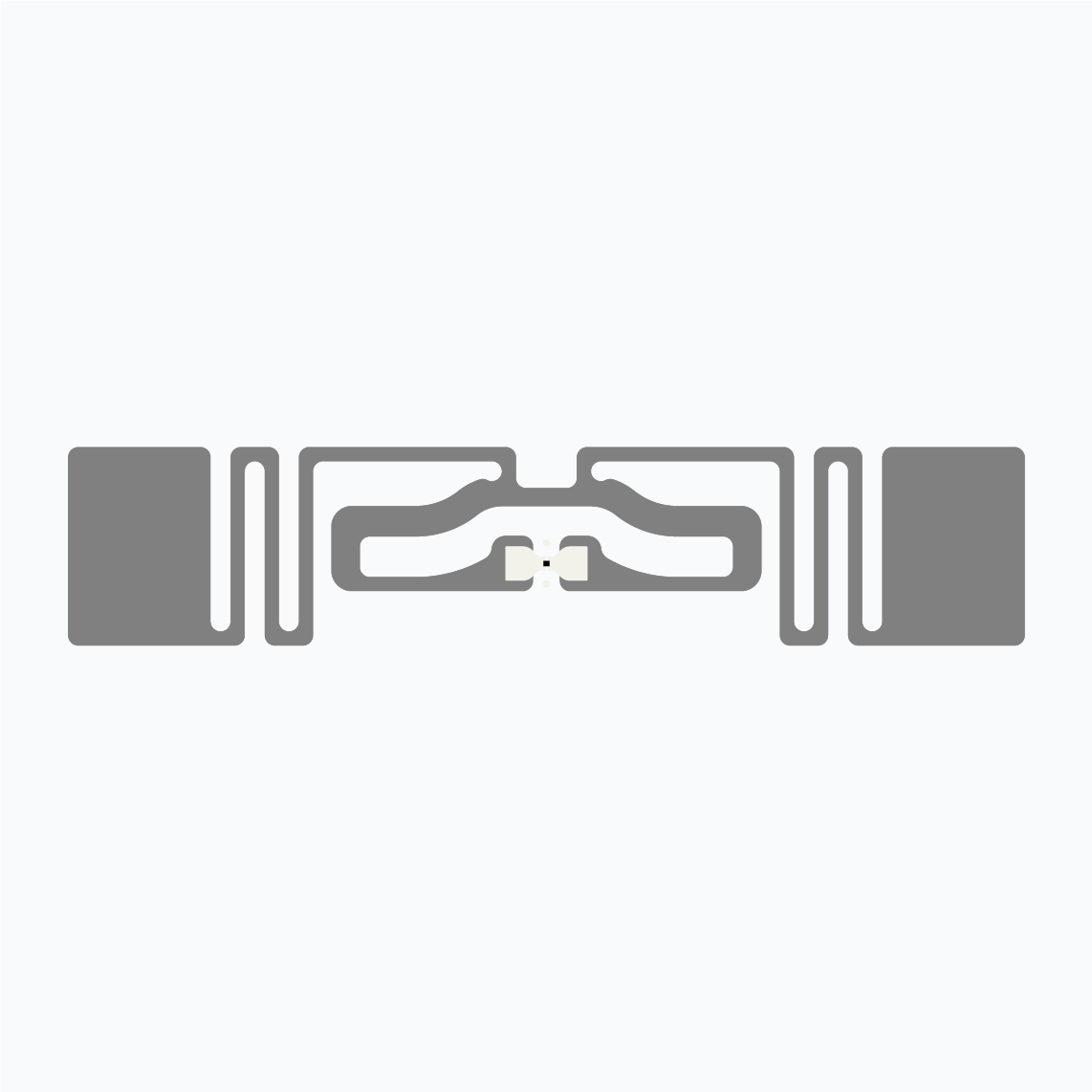

AD-23x U9, UCode 9

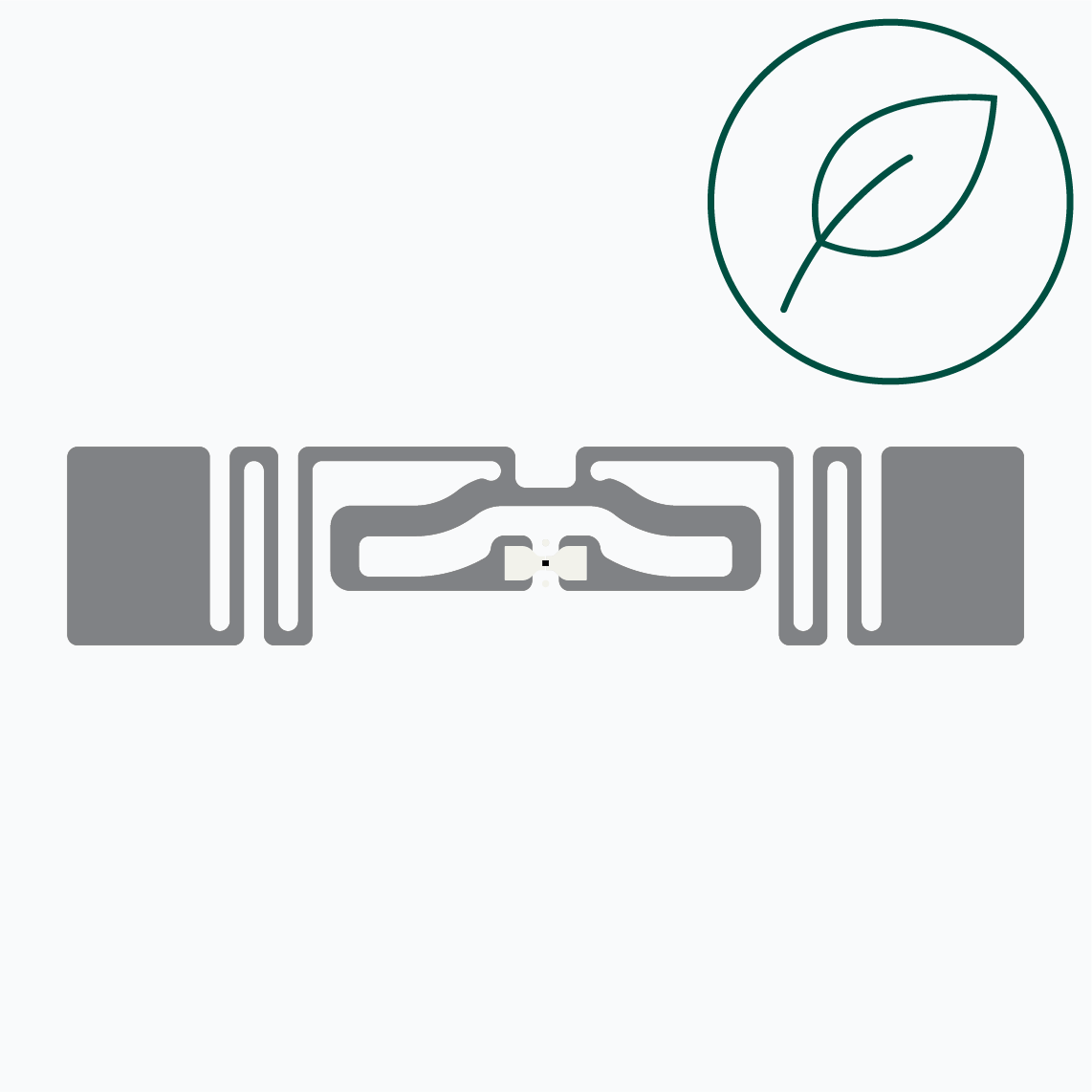

AD-23x U9 Pure, UCode 9
