AD Spine M730  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-130 U8

Meets the challenges of narrow spaces and de-tuning materials

Industry segments: Industrial Applications, Healthcare

AD Spine M730 tags and inlays offer top performance where space is very limited. They cover a range of applications from supply chain and industrial automation to healthcare and wood. AD Spine M730 tags and inlays are also well-suited for use on highly detuning and difficult to tag materials.

Our inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, enhancing RFID usage for difficult to tag materials.

Please find a comprehensive overview of all features in the data sheet.

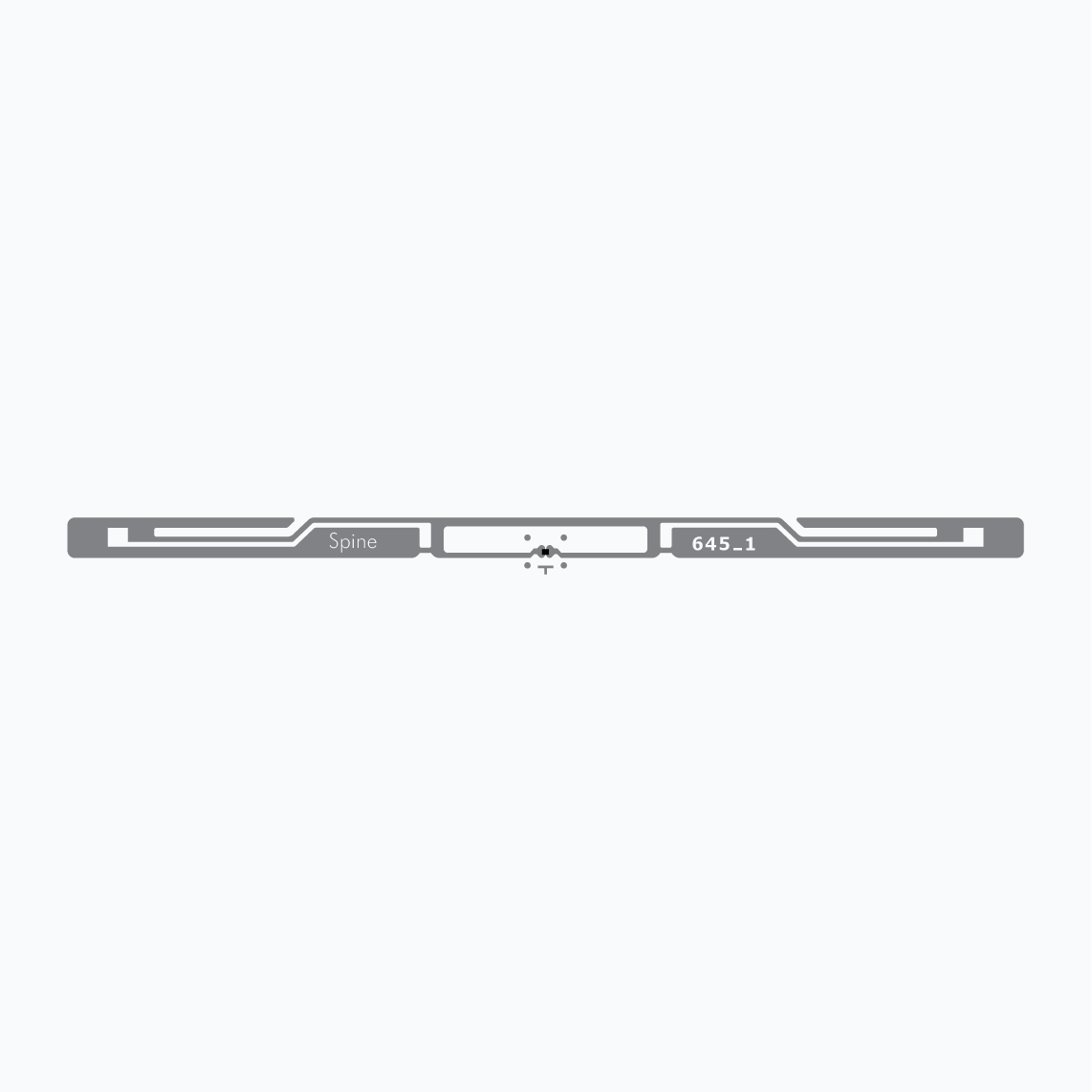

UHF RFID Inlay:  AD Spine M730

AD Spine M730

  • Chip: Impinj M730
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    95 x 4 mm / 3.7 x 0.16 in
  • Die cut dimensions:
    98x6 mm / 3.9 x 0.24 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
