UHF RFID Inlay: AD-387 U9

UHF RFID Inlay: AD-387 U9

Combining performance and versatility

Industry segments: Apparel, Logistics

AD-387 U9 from Avery Dennison Smartrac is a high performing inlay suitable for a wide variety of RFID tagging applications. It features the UCODE 9 chip by NXP.  T he Gen2 UHF RFID inlay perfectly integrates with a wide variety of RFID tagging applications, including supply chain, inventory & logistics, apparel and home essentials.

AD-387 U9 features the UCODE 9 chip that is equipped with 96 bits of EPC memory, including a 96-bit Tag IDentifier (TID) with a 48-bit unique serial number factory-encoded into the TID.

AD-387 U9 is available in wide-edge leading (WEL) format and narrow-edge leading (NEL) format. Delivery formats include dry, dry+, wet and label / sticker.

Like all RFID products from Avery Dennison, AD-387 U9 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality. AD-387 U9 has passed ARC category N, Spec Q, M, G, F, L, J, I, K, W1, W2, W3, W4, W5, and W6.

Please find a comprehensive overview of all features in the data sheet.

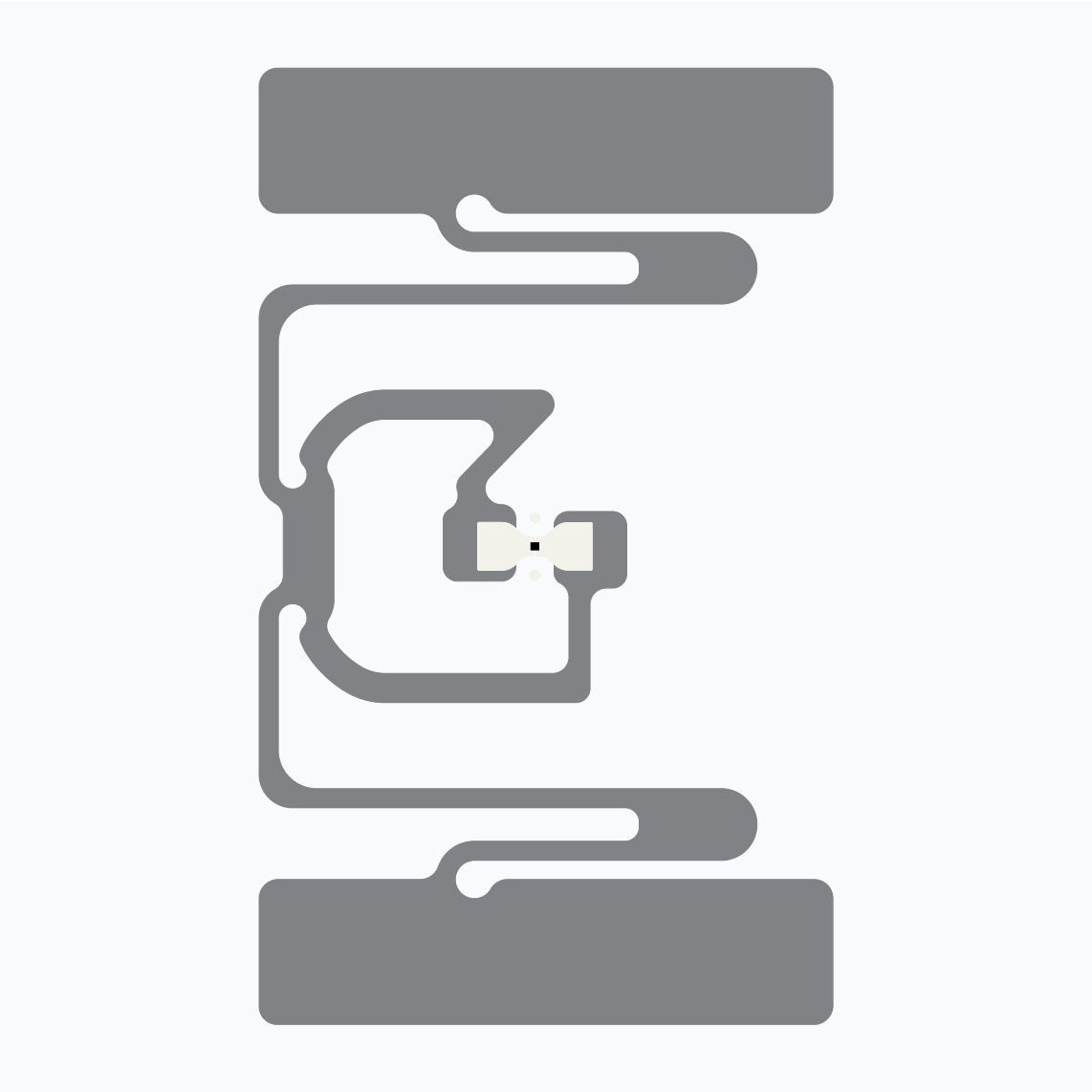

UHF RFID Inlay:  AD-387 U9

AD-387 U9, NXP UCODE 9

  • Chip: NXP UCODE 9
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.18 x 1.97 in
  • Die cut dimensions:
    54 x 34 mm / 2.13 x 1.34 in
  • EPC memory: 96 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry inlay RF602178
    Wet inlay RF602179
    Label / sticker RF100973

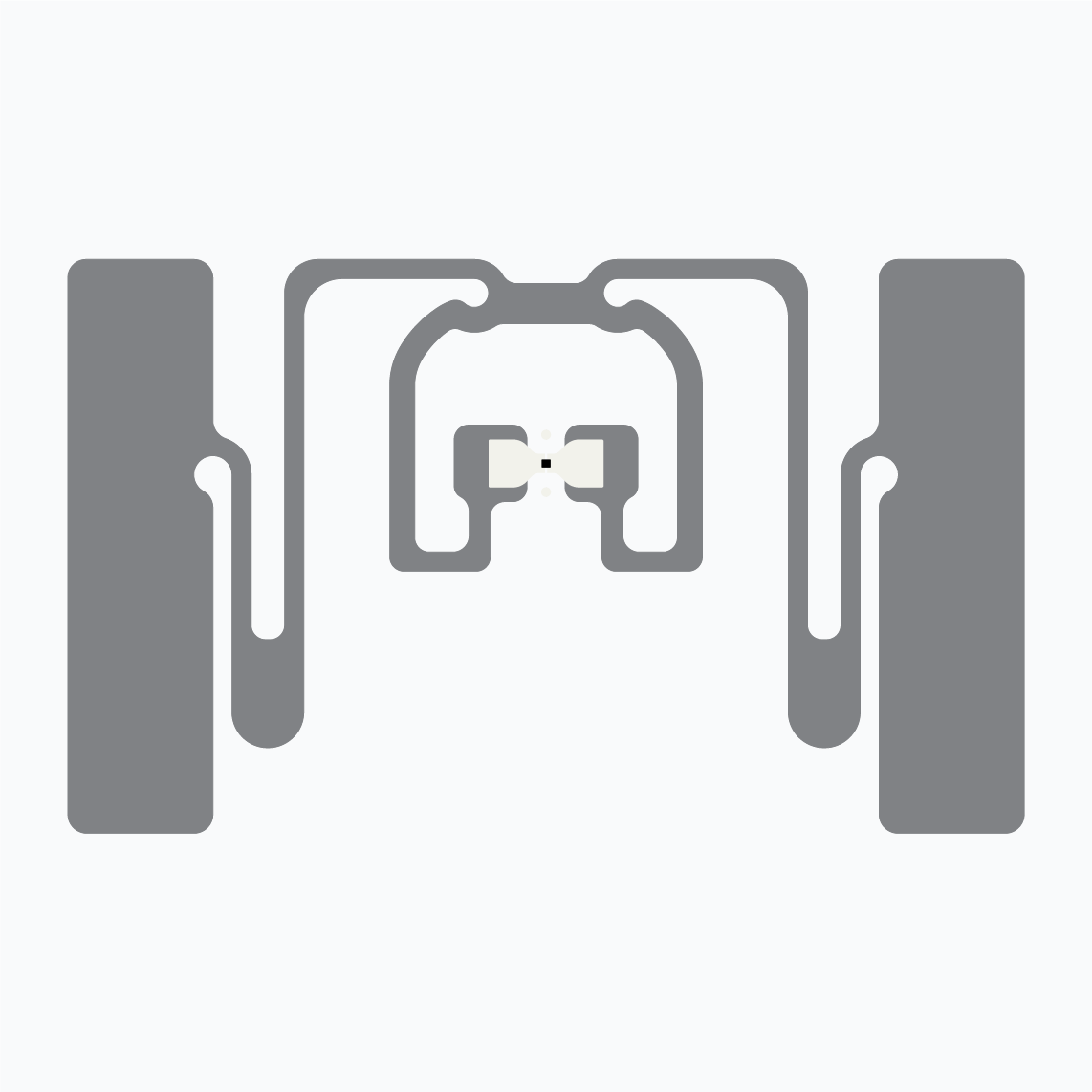

UHF RFID Inlay:  AD-387 U9 NEL

AD-387 U9 NEL, NXP UCODE 9

  • Chip: NXP UCODE 9
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 50 mm / 1.18 x 1.97 in
  • Die cut dimensions:
    34 x 54 mm / 1.34 x 2.13 in
  • EPC memory: 96 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay RF602460
    Wet  inlay RF602462
    Label / sticker RF101126
UHF RFID Inlay:  AD-387 U9 NEL

AD-387 U9 NEL, NXP UCODE 9
strap attach

  • Chip: NXP UCODE 9
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 50 mm / 1.18 x 1.97 in
  • Die cut dimensions:
    34 x 54 mm / 1.34 x 2.13 in
  • EPC memory: 96 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay RF602461
    Wet  inlay RF602463
