Industry segments: Apparel & Fashion, Healthcare, Logistics
AD-327 U9 inlays from Avery Dennison are ideally suited for a wide variety of RFID tagging applications, particularly those related to the areas of supply chain, inventory and logistics, apparel, and pharmaceutical & healthcare.

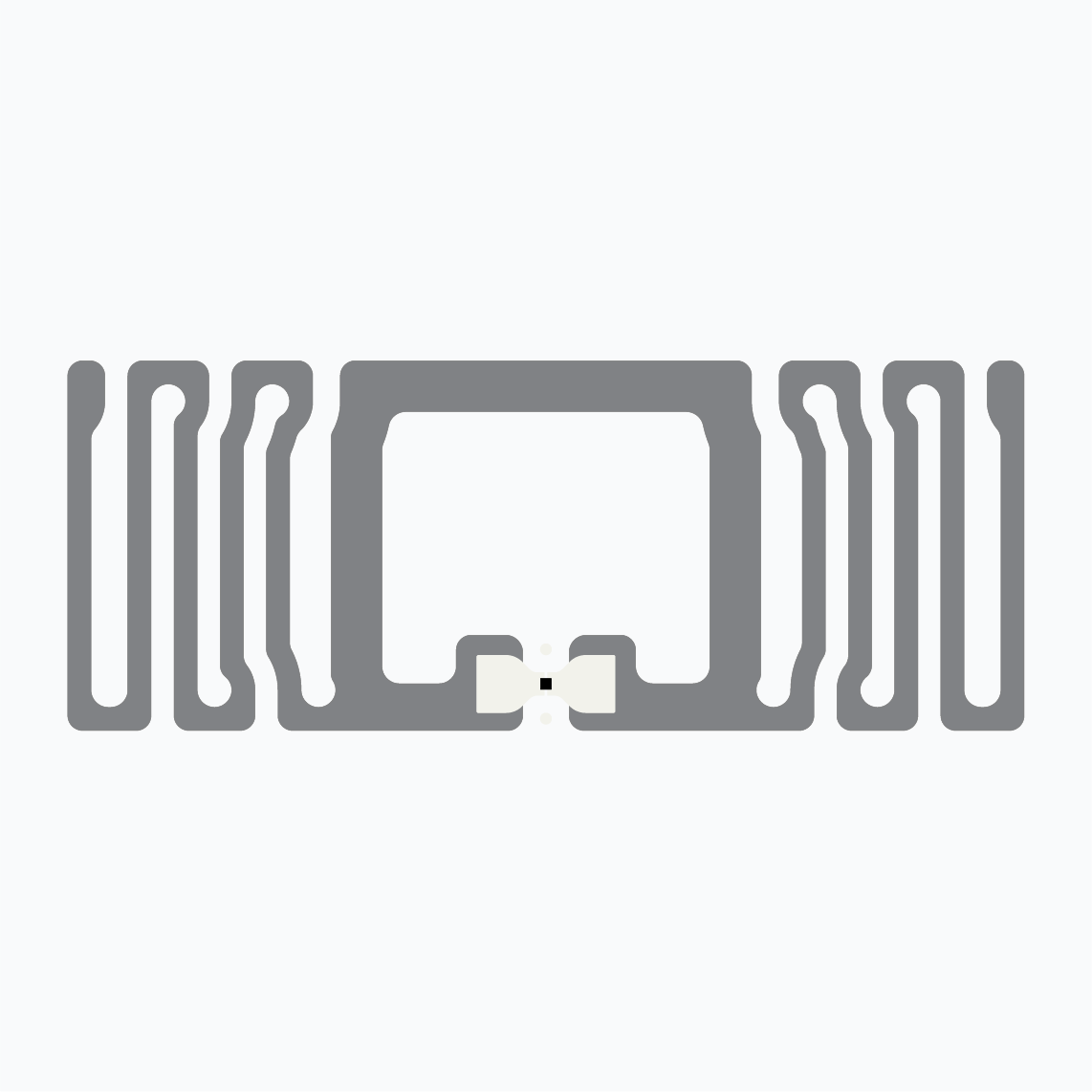

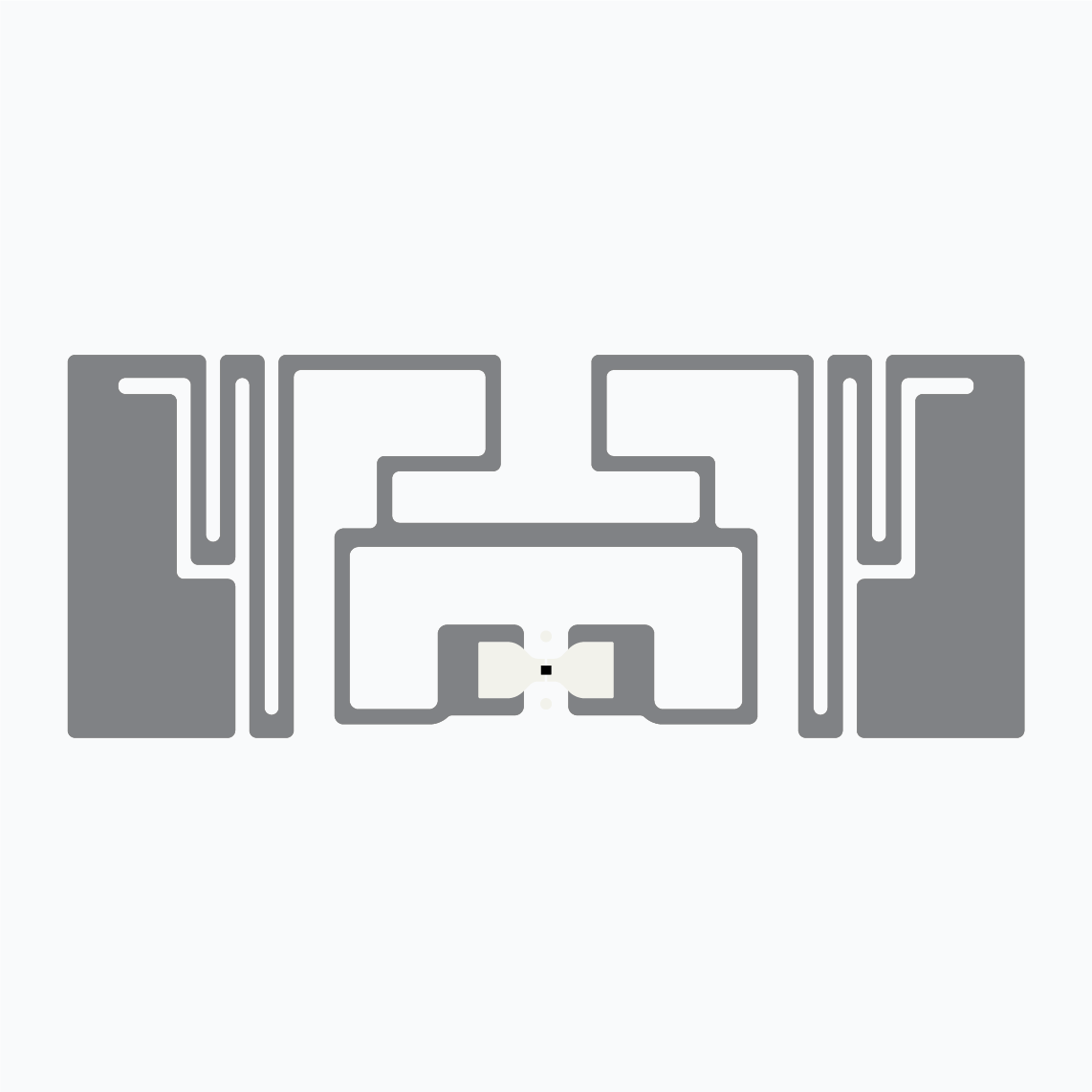

The Gen2 UHF RFID inlay’s 41 x 16mm design is optimized for outstanding performance in the ETSI frequency band (865-868 MHz) and features the UCODE 9 IC by NXP. The Gen2 UHF RFID inlay’s 42.5 x 17mm design is optimized for outstanding performance in the FCC frequency band (902-928 MHz) and features the UCODE 9 IC by NXP.
AD-327 U9 UCODE 9 chip features 96-bit of EPC memory and a 96-bit unique factory-locked TID number. A 48-bit unique serial number is factory encoded into the TID.

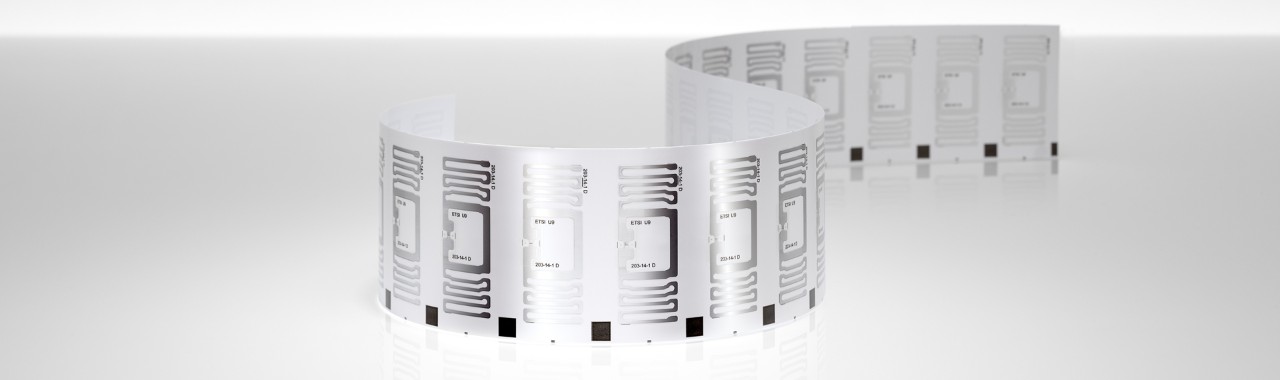

Delivery formats include dry, wet and paper inlay.
Like all RFID products from Avery Dennison, AD-327 U9 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

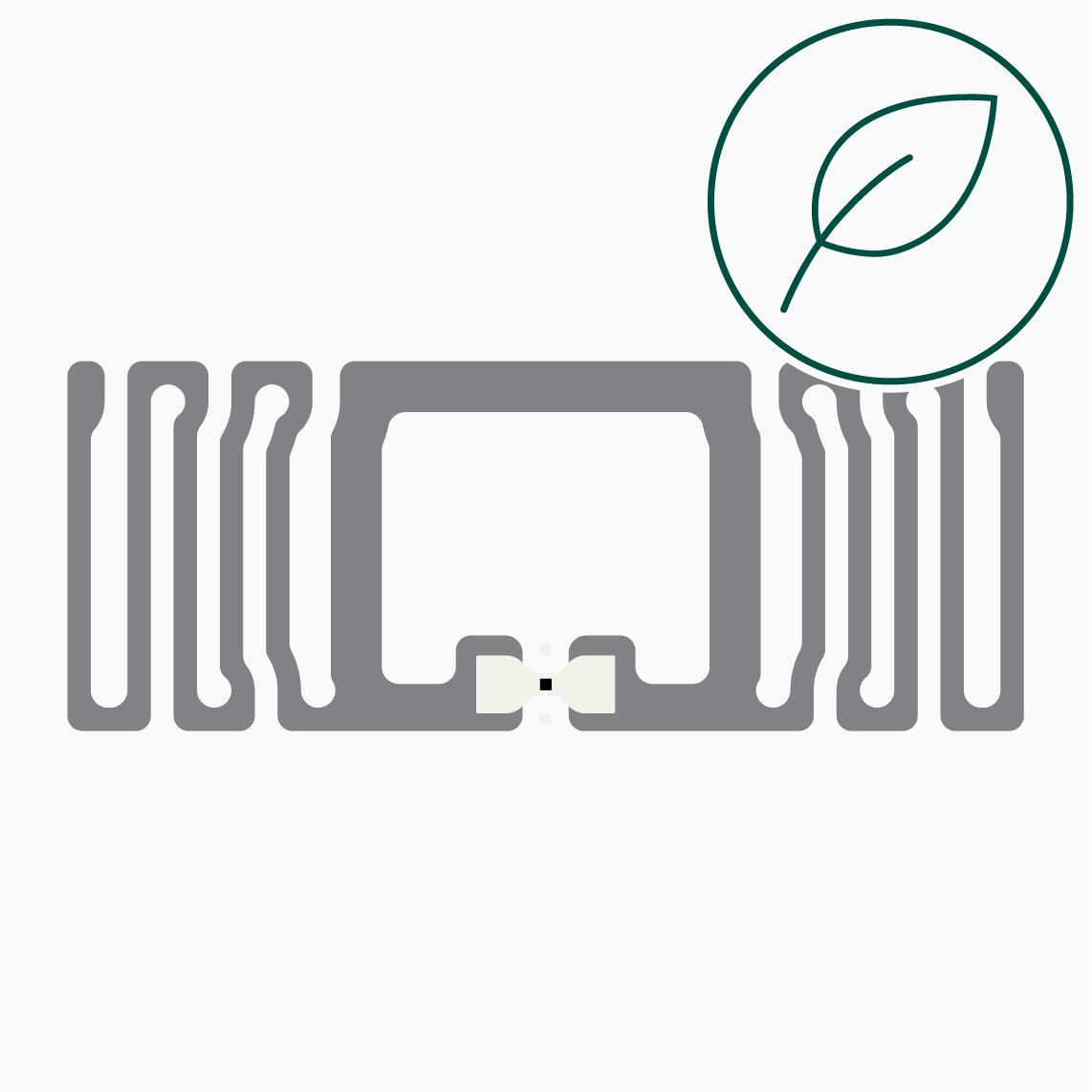

This inlay is part of the ‘AD Pure’ range, Avery Dennison's portfolio of inlays with a pure aluminum antenna, and the inlay´s total construction with up to 95% PET-free in both wet inlay and SmartFace™ label formats.
Please find a comprehensive overview of all features in the data sheet.
AD-327 U9, UCode 9 ETSI
AD-327 U9 ETSI Pure
AD-327 U9, UCode 9 FCC
