Industry segments: Apparel & Fashion, Healthcare, Logistics, Other Retail
AD-325 M730 FCC inlays from Avery Dennison are ideally suited for a wide variety of RFID tagging applications, particularly those related to the areas of supply chain, inventory & logistics, apparel, and pharmaceutical & healthcare.

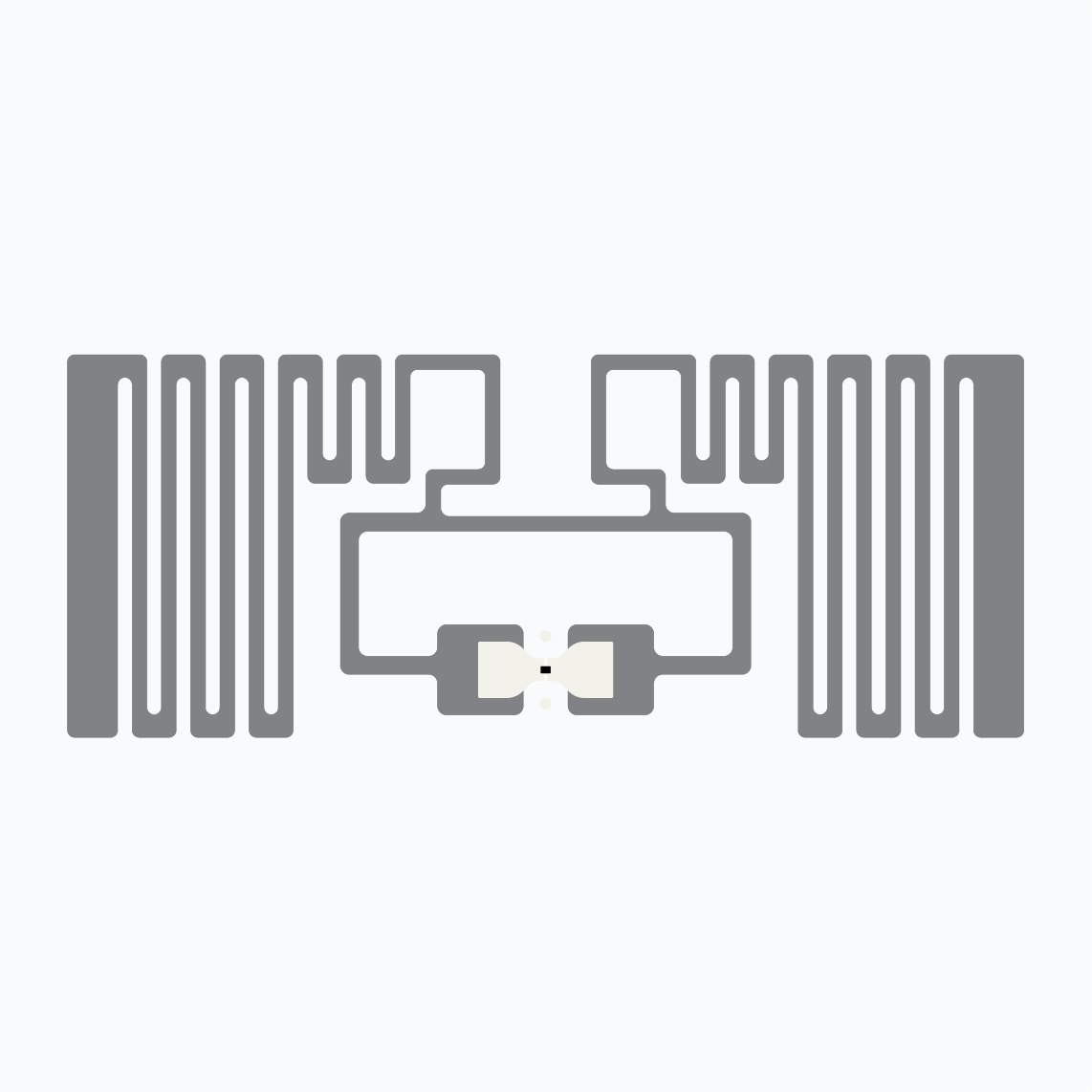

The Gen2 UHF RFID inlay’s 42.5 x 17 mm design is optimized for outstanding performance in the FCC frequency band (902-928 MHz) and features the Impinj M730 tag chip.
AD-325 M730 features 128-bit of EPC memory and a 96-bit unique factory-locked TID number. A 48-bit unique serial number is factory encoded into the TID. The M730 IC is packed with features including AutoTune™, Short-Range Mode, TagFocus™, FastID™, Access, BlockWrite, Lock, Untraceable, and Protected Mode.
Delivery formats include dry inlay, wet inlay and paper label.
Like all RFID products from Avery Dennison, AD-325 M730 FCC inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.
Please find a comprehensive overview of all features in the data sheet.
AD-325 M730, FCC
