AD-311 M750  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-311 M750

High performance and flexible use

Industry segments: Apparel & Fashion, Healthcare, Logistics

AD-311 M750 inlays from Avery Dennison Smartrac are the solution of choice for a wide variety of RFID tagging applications and features the M750 chip by Impinj.

The high performing, Gen2 UHF RFID inlays are a perfect fit for retail items such as apparel and home essentials, and integrate well into supply chain, inventory and logistics applications.

AD-311 M750 inlays provide 96 bits of EPC memory and 32 bits of User Memory and enables features such as AutoTuneTM, EnduroTM, IntegraTM, FastIDTM, TagFocusTM, BlockWrite, Lock/Permalock, Access/Kill, Untraceable/Short Range Mode, and Protected Mode. A 96-bit Tag IDentifier (TID) is factory locked with a 48-bit unique serial number embedded into the TID.

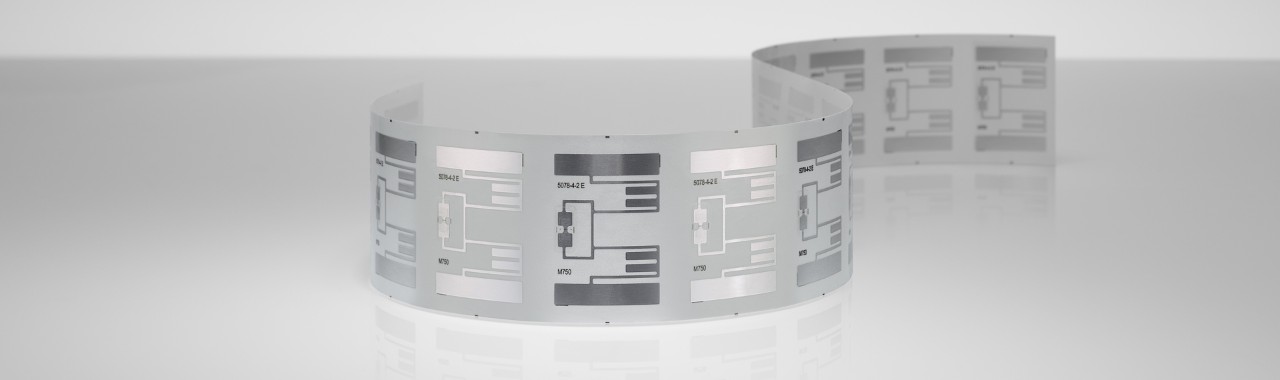

Delivery formats include dry inlay, wet inlay, and paper label..

Like all RFID products from Avery Dennison, AD-311 M750 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay: AD-311 M750

AD-311 M750

  • Chip: Impinj M750
  • Operating frequency:
    UHF (860-960 Mhz)

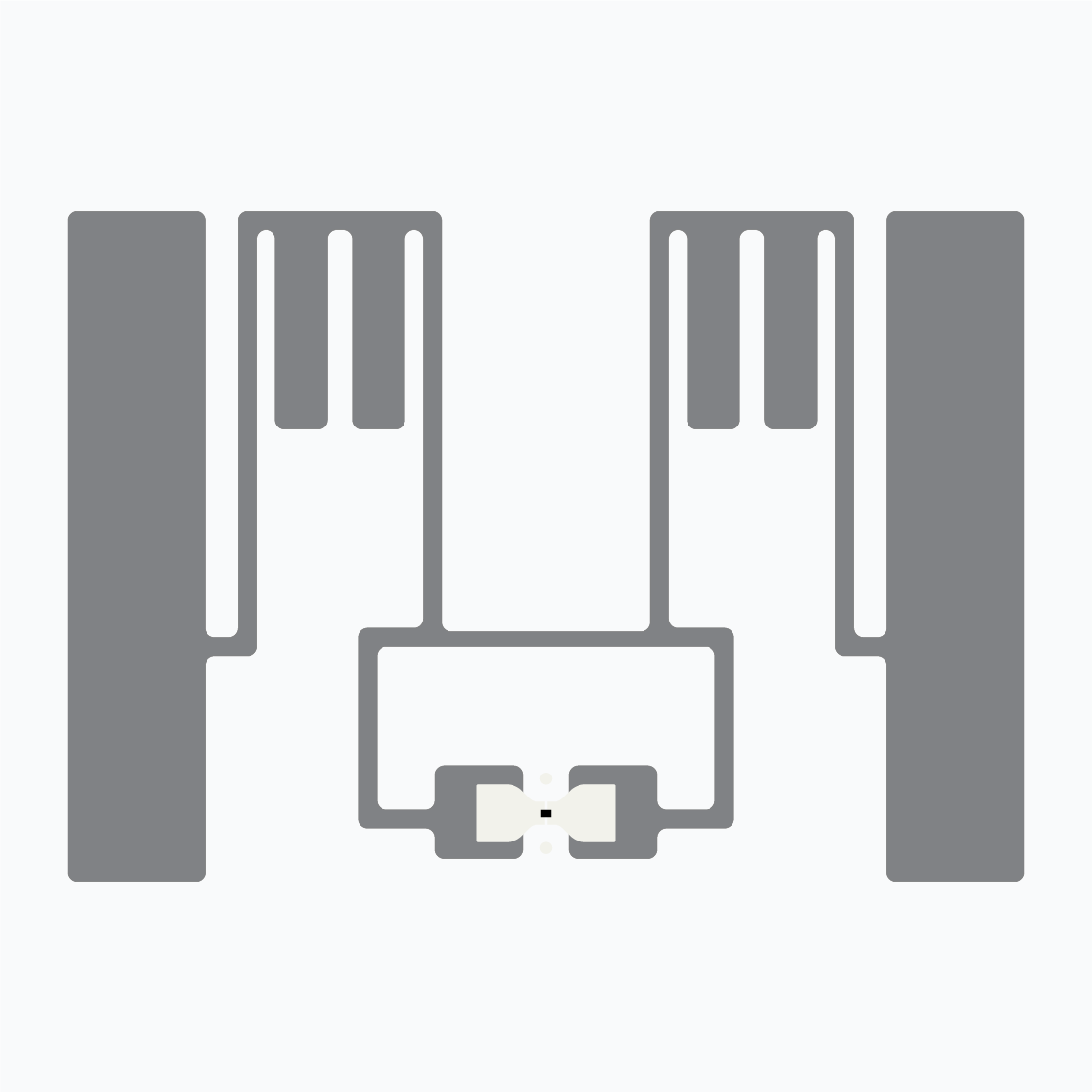

  • Antenna dimensions:
    41,40 x 29 mm / 1.63 x 1.142 in
  • Die cut dimensions:
    44.45 x 33 mm / 1.75 x 1.30 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay RF602390
    Wet inlay RF602391
    Label/sticker RF101090
Data sheet
