AD-192 M730  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-192 M730

Ideal for small item-level tagging

Industry segments: Apparel & Fashion, Healthcare, Beauty & Personal Care

Our AD-192 M730 inlays and tags are specially designed for jewelry and cosmetics applications, and offer excellent performance.

AD-192 M730 inlays and tags have a tiny (22 mm / 0.9 inch) form factor, allowing them to be easily converted into small-sized hang-tags for jewelry labels, or attached to small cosmetic items. They are equipped with the Impinj M730 chip that comes with an autotune feature, which helps the AD-192 M730 product to work at peak efficiency, even in rapidly changing environments. AD-192 products are available with the Impinj M730 and offer 128-bit EPC and 96-bit of serialized TID with a 48-bit serial number and are 100% performance tested. The inlays and tags are available in dry, wet and label delivery formats.

Our inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD-192 M730

AD-192 M730

  • Chip: Impinj M730
  • Operating frequency:
    UHF (860-960 Mhz)

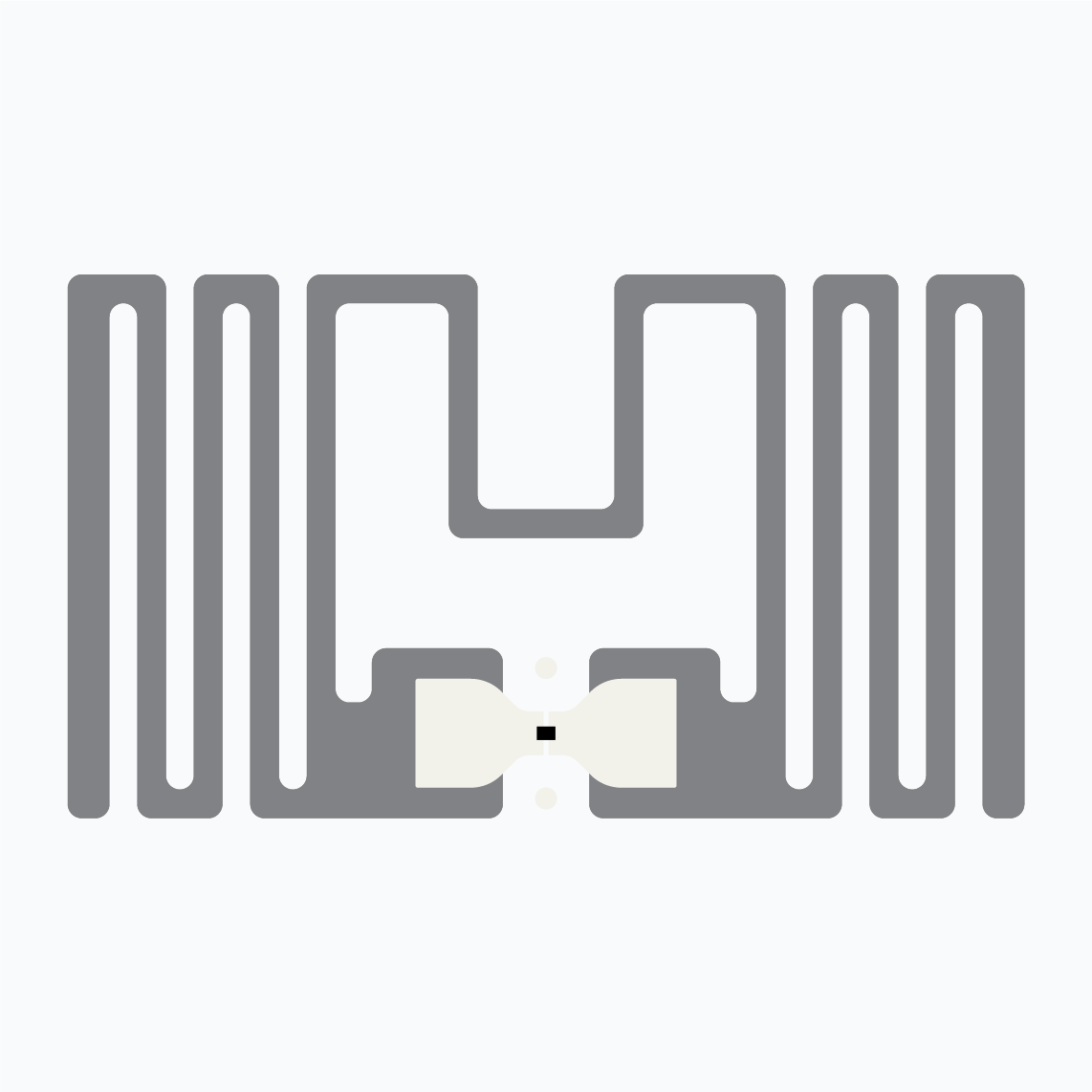

  • Antenna dimensions:
    22 x 12,50 mm / 0.90 x 0.50 in
  • Die cut dimensions:
    24 x 15.50 mm / 0.945 x 0.610 in
    31.75 x 15.50 mm / 1.25 x 0.61 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay RF602397
    Wet inlay RF602398
    Label/sticker RF101097
