AD-130 U8  [UHF RFID tag and inlay]

Ideal for item-level tagging

Industry segments: Apparel & Fashion, Beauty & Personal Care, Healthcare

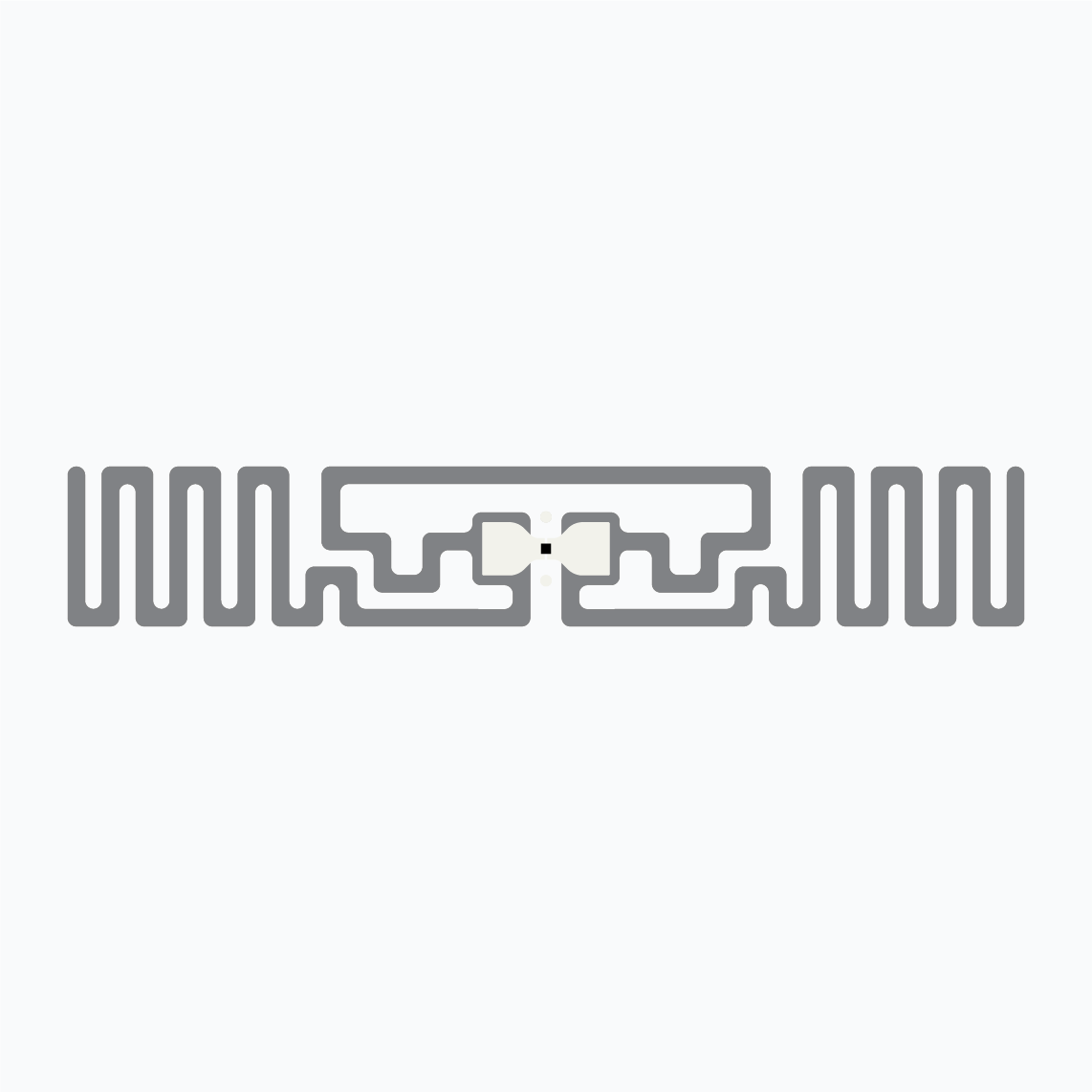

AD-130 U8 UHF RFID inlays from Avery Dennison Smartrac are recommended for tagging item-level retail products serving a multitude of industries including Beauty & Personal Care, Healthcare and Apparel. The 45 x 7.5mm design was originally developed for tagging fashion jewelry cards in retail environments, but AD-130 U8 has also been found to perform quite well when tracking items such as boxed cosmetics.

Performance tests in a lab setting confirm the inlay is capable of achieving 4-5 foot read distance with a handheld reader when single items are tagged and grouped according to package type. Best results are achieved when tagging items packaged with cardstock backing or in a boxes made of cardstock, including those containing blister packs.

AD-130 U8 inlays are equipped with a UCODE 8 ICs from NXP, featuring 128-bit of EPC memory and 48-bit unique serialized TID number. Delivery formats include dry inlay, wet inlay, and paper label.

AD-130 U8 inlays comply with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment. They are manufactured to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University, which awarded Avery Dennison its first ever ARC accreditation for overall quality.
