AD Dot R6-P  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-Dot R6-P

Perfect for small item-level industry applications

Industry segments: Healthcare, Industrial Applications, Other Retail


Our AD Dot R6-P inlays and tags are designed for item-level identification requiring a small footprint. The compact and reliable products are the perfect fit for smaller industry applications.

AD Dot R6-P inlays and tags are an optimum solution for small item-level tagging, unmatched performance for small difficult-to-tag items and offer great RF-stability in a small form factor.

AD Dot R6-P is available with the Impinj R6-P IC with 128 bit EPC +96 bit TID memory. The IC is compatible with the global GS1 UHF Gen2v2 standard which ISO/IEC standardized as 18000-63.

Our inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 4001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay: AD-Dot R6-P

AD Dot R6-P

  • Chip: Impinj Monza R6-P
  • Frequency Band:
    UHF (860-960 Mhz)

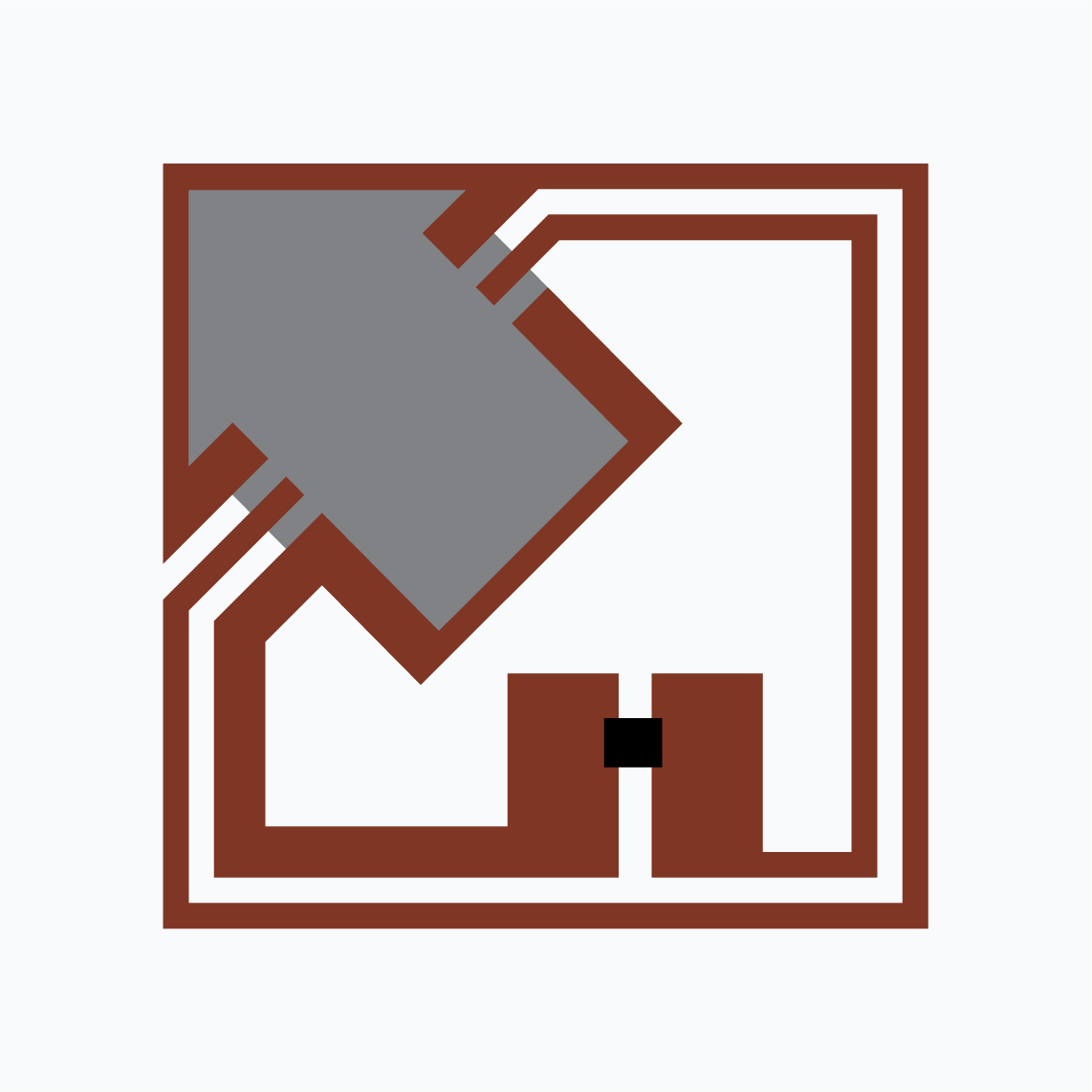

  • Antenna Dimensions:
    3 x 3 mm / 0.118 x 0.118 in
  • Die Cut Dimensions:
    4 x 4 mm / 0.157 x 0.157 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Wet inlay 3007493
    Wet inlay 3007947
